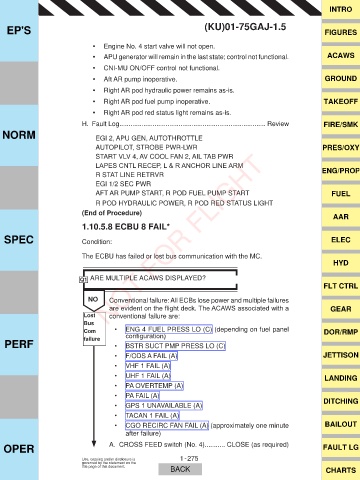

Engine No. 4 start valve will not open.
APU generator will remain in the last state; control not functional. ACAWS
CNI-MU ON/OFF control not functional.
Aft AR pump inoperative. GROUND
Right AR pod hydraulic power remains as-is.
Right AR pod fuel pump inoperative. TAKEOFF
Right AR pod red status light remains as-is.
H. Fault Log............................................................................... Review FIRE/SMK
NORM EGI 2, APU GEN, AUTOTHROTTLE
AUTOPILOT, STROBE PWR-LWR PRES/OXY
Bus NOT FOR FLIGHT
START VLV 4, AV COOL FAN 2, AIL TAB PWR
/$3(6 &17/ 5(&(3 / 5 $1&+25 /,1( $50 ENG/PROP
R STAT LINE RETRVR
EGI 1/2 SEC PWR
AFT AR PUMP START, R POD FUEL PUMP START FUEL
R POD HYDRAULIC POWER, R POD RED STATUS LIGHT
(End of Procedure)
AAR
1.10.5.8 ECBU 8 FAIL*
SPEC Condition: ELEC
The ECBU has failed or lost bus communication with the MC.
HYD
Q1 ARE MULTIPLE ACAWS DISPLAYED?
FLT CTRL
NO Conventional failure: All ECBs lose power and multiple failures
DUH HYLGHQW RQ WKH ÀLJKW GHFN 7KH $&$:6 DVVRFLDWHG ZLWK D GEAR
Lost conventional failure are:
Com ENG 4 FUEL PRESS LO (C) (depending on fuel panel DOR/RMP
FRQ¿JXUDWLRQ
PERF failure BSTR SUCT PMP PRESS LO (C)
F/ODS A FAIL (A) JETTISON
VHF 1 FAIL (A)
UHF 1 FAIL (A) LANDING
PA OVERTEMP (A)
PA FAIL (A) DITCHING
GPS 1 UNAVAILABLE (A)
TACAN 1 FAIL (A)
CGO RECIRC FAN FAIL (A) (approximately one minute BAILOUT
after failure)
OPER A. CROSS FEED switch (No. 4)........... CLOSE (as required) FAULT LG
