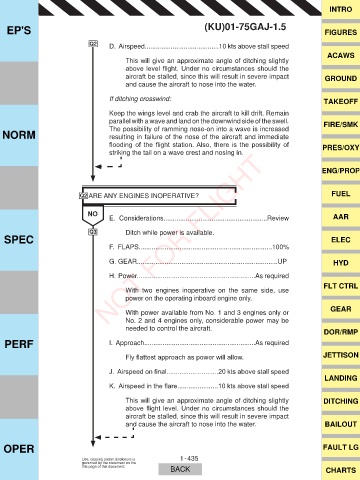

Page 475 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

Q2 D. Airspeed........................................10 kts above stall speed
ACAWS
This will give an approximate angle of ditching slightly
DERYH OHYHO ÀLJKW 8QGHU QR FLUFXPVWDQFHV VKRXOG WKH
aircraft be stalled, since this will result in severe impact GROUND
and cause the aircraft to nose into the water.

If ditching crosswind: TAKEOFF
Keep the wings level and crab the aircraft to kill drift. Remain
parallel with a wave and land on the downwind side of the swell. FIRE/SMK
NORM The possibility of ramming nose-on into a wave is increased
resulting in failure of the nose of the aircraft and immediate
ÀRRGLQJ RI WKH ÀLJKW VWDWLRQ $OVR WKHUH LV WKH SRVVLELOLW\ RI PRES/OXY
striking the tail on a wave crest and nosing in.

ENG/PROP

Q2 ARE ANY ENGINES INOPERATIVE? FUEL

NO AAR
E. Considerations........................................................Review
Q3 Ditch while power is available.
SPEC NOT FOR FLIGHT ELEC
F. FLAPS........................................................................100%

G. GEAR............................................................................UP HYD

H. Power................................................................As required
FLT CTRL
With two engines inoperative on the same side, use
power on the operating inboard engine only.
GEAR
With power available from No. 1 and 3 engines only or
No. 2 and 4 engines only, considerable power may be
needed to control the aircraft.
DOR/RMP
PERF I. Approach............................................................As required

)O\ ÀDWWHVW DSSURDFK DV SRZHU ZLOO DOORZ JETTISON

- $LUVSHHG RQ ¿QDO NWV DERYH VWDOO VSHHG
LANDING
. $LUVSHHG LQ WKH ÀDUH NWV DERYH VWDOO VSHHG

This will give an approximate angle of ditching slightly DITCHING
DERYH ÀLJKW OHYHO 8QGHU QR FLUFXPVWDQFHV VKRXOG WKH
aircraft be stalled, since this will result in severe impact
and cause the aircraft to nose into the water. BAILOUT

OPER FAULT LG

Use, copying and/or disclosure is 1 -435
governed by the statement on the
title page of this document. BACK CHARTS
