Torque [Nm]TAPTITE 2000® – Thread-rolling in metals

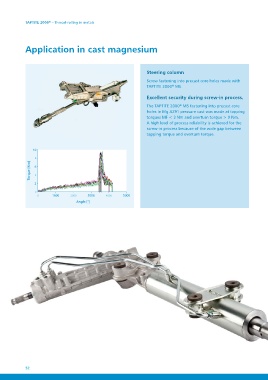

Application in cast magnesium
Steering column
Screw fastening into precast core holes made with
TAPTITE 2000® M5.
Excellent security during screw-in process.
The TAPTITE 2000® M5 fastening into precast core
holes in Mg AZ91 pressure cast was made at tapping
torques MF < 3 Nm and overturn torque > 9 Nm.
A high level of process reliability is achieved for the
screw-in process because of the wide gap between
tapping torque and overturn torque.
Angle [°]
10 52
