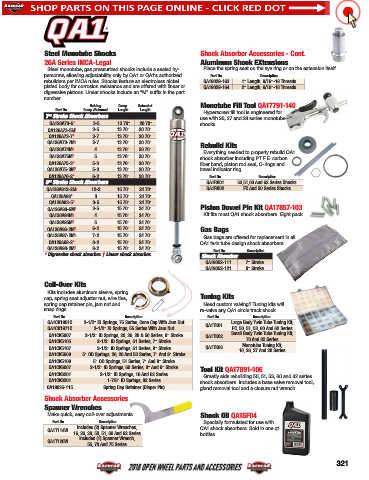

Page 322 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Steel Monotube Shocks Shock Absorber Accessories - Cont.
26A Series IMCA-Legal Aluminum Shock EXtensions
Steel monotube, gas pressurized shocks include a sealed hy- Place the spring seat on the eye ring or on the extension itself.
perscrew, allowing adjustability only by QA1 or QA1’s authorized Part No. Description
rebuilders per IMCA rules. Shocks feature an electroless nickel QA19029-163 1" Length, 9/16"-18 Threads
plated body for corrosion resistance and are offered with linear or QA19029-164 2" Length, 9/16"-18 Threads
digressive pistons. Linear shocks include an “M” suffix in the part
number.
Valving Comp. Extended Monotube Fill Tool QA17791-140
Part No. Comp./Rebound Length Length
Hyperscrew fill tool is engineered for
7" Stroke Shock Absorbers use with 26, 27 and 28 series monotube
QA126A73-5* 3-5 13.70" 20.70" shocks.
QA126A73-5M † 3-5 13.70" 20.70"
QA126A73-7* 3-7 13.70" 20.70"
QA126A73-7M † 3-7 13.70" 20.70" Rebuild Kits
QA126A74M † 4 13.70" 20.70"
Everything needed to properly rebuild QA1
QA126A75M † 5 13.70" 20.70"
shock absorber including P.T.F.E. carbon
QA126A75-3* 5-3 13.70" 20.70" fiber band, piston rod seal, O-rings and
QA126A75-3M † 5-3 13.70" 20.70" travel indicator ring.
QA126A76-2* 6-2 13.70" 20.70" Part No. Description
9" Stroke Shock Absorbers QA1RK01 53,51,60 And 62 Series Shocks
QA126A912-2M † 12-2 15.70" 24.70" QA1RK02 FC And 50 Series Shocks
QA126A93* 3 15.70" 24.70"
QA126A93-5* 3-5 15.70" 24.70"
QA126A93-5M † 3-5 15.70" 24.70" Piston Dowel Pin Kit QA17857-103
QA126A94M † 4 15.70" 24.70" Kit fits most QA1 shock absorbers. Eight pack.
QA126A95M † 5 15.70" 24.70"
QA126A96-2M † 6-2 15.70" 24.70" Gas Bags
QA126A97-2M † 7-2 15.70" 24.70" Gas bags are offered for replacement in all
QA126A98-2* 8-2 15.70" 24.70" QA1 twin tube design shock absorbers.
QA126A98-2M † 8-2 15.70" 24.70" Part No. Description
* Digressive shock absorber. † Linear shock absorber. Shock Absorber
QA19052-111 7" Stroke
QA19052-121 9" Stroke

Coil-Over Kits
Kits includes aluminum sleeve, spring
cap, spring seat adjuster nut, wire ties, Tuning Kits
spring cap retainer pin, jam nut and Need custom valving? Tuning kits will
snap rings. re-valve any QA1 circle track shock.
Part No. Description Part No. Description
QA1CK1951C 2-1/2" ID Springs, 75 Series, Cone Cap With Jam Nut Large Body Twin Tube Tuning Kit,
QA1TK01
QA1CK1971C 2-1/2" ID Springs, 55 Series With Jam Nut FC, 50, 51, 53, 60 And 62 Series
QA1CK5007 2-1/2" ID Springs, 20, 26, 28 & 50 Series, 9" Stroke QA1TK02 Small Body Twin Tube Tuning Kit,
70 And 82 Series
QA1CK5105 2-1/2" ID Springs, 51 Series, 7" Stroke Monotube Tuning Kit,
QA1CK5107 2-1/2" ID Springs, 51 Series, 9" Stroke QA1TK08 16, 26, 27 And 28 Series
QA1CK5009 5" OD Springs, 26, 28 And 50 Series, 7" And 9" Stroke
QA1CK5109 5" OD Springs, 51 Series, 7" And 9" Stroke
QA1CK6007 2-1/2" ID Springs, 60 Series, 8" And 9" Stroke Tool Kit QA17891-106
QA1CK6201 2-1/2" ID Springs, 16 And 62 Series Greatly aids rebuilding 50, 51, 53, 60 and 62 series
QA1CK8201 1-7/8" ID Springs, 82 Series shock absorbers. Includes a base valve removal tool,
QA19035-115 Spring Cap Retainer (Diaper Pin) gland removal tool and a closure nut wrench.

Shock Absorber Accessories
Spanner Wrenches
Make quick, easy coil-over adjustments. Shock Oil QA1SF04
Part No. Description Specially formulated for use with
Includes (2) Spanner Wrenches, QA1 shock absorbers. Sold in one qt.
QA1T114W
16, 26, 28, 50, 51, 60 And 62 Series bottles.
Includes (1) Spanner Wrench,
QA1T120W
55, 70 And 75 Series
