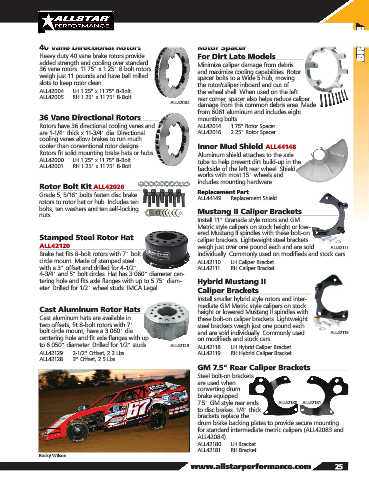

Page 27 - 2019 Allstar Performance Parts and Equipment Catalog
P. 27
BRAKE
40 Vane Directional Rotors Rotor Spacer
Heavy duty 40 vane brake rotors provide For Dirt Late Models
added strength and cooling over standard Minimize caliper damage from debris
36 vane rotors. 11.75" x 1.25" 8 bolt rotors and maximize cooling capabilities. Rotor
weigh just 11 pounds and have ball milled spacer bolts to a Wide 5 hub, moving
slots to keep rotor clean. the rotor/caliper inboard and out of
ALL42004 ..... LH 1.25" x 11.75" 8-Bolt the wheel shell. When used on the left
ALL42005 ..... RH 1.25" x 11.75" 8-Bolt rear corner, spacer also helps reduce caliper
ALL42004
damage from this common debris area. Made
from 6061 aluminum and includes eight
36 Vane Directional Rotors mounting bolts.
Rotors have 36 directional cooling vanes and ALL42014 ..... 1.75" Rotor Spacer
are 1-1/4" thick x 11-3/4" dia. Directional ALL42016 ..... 2.25" Rotor Spacer
cooling vanes allow brakes to run much
cooler than conventional rotor designs. Inner Mud Shield ALL44148
Rotors fit solid mounting brake hats or hubs.
Aluminum shield attaches to the axle
ALL42000 ..... LH 1.25" x 11.75" 8-Bolt tube to help prevent dirt build-up in the
ALL42001 ..... RH 1.25" x 11.75" 8-Bolt backside of the left rear wheel. Shield
works with most 15" wheels and
includes mounting hardware.
Rotor Bolt Kit ALL42026
Replacement Part
Grade 5, 5/16" bolts fasten disc brake ALL44149 ..... Replacement Shield
rotors to rotor hat or hub. Includes ten
bolts, ten washers and ten self-locking Mustang II Caliper Brackets
nuts.
Install 11" Granada style rotors and GM
Metric style calipers on stock height or low-
ered Mustang II spindles with these bolt-on
Stamped Steel Rotor Hat
caliper brackets. Lightweight steel brackets
ALL42120 weigh just over one pound each and are sold ALL42111
Brake hat fits 8-bolt rotors with 7" bolt individually. Commonly used on modifieds and stock cars.
circle mount. Made of stamped steel ALL42110 ..... LH Caliper Bracket
with a 3" offset and drilled for 4-1/2", ALL42111 ...... RH Caliper Bracket
4-3/4" and 5" bolt circles. Hat has 3.060" diameter cen-
tering hole and fits axle flanges with up to 5.75" diam- Hybrid Mustang II
eter. Drilled for 1/2" wheel studs. IMCA Legal.
Caliper Brackets
Install smaller hybrid style rotors and inter-
mediate GM Metric style calipers on stock
Cast Aluminum Rotor Hats height or lowered Mustang II spindles with
Cast aluminum hats are available in these bolt-on caliper brackets. Lightweight
two offsets, fit 8-bolt rotors with 7" steel brackets weigh just one pound each
bolt circle mount, have a 3.060" dia. and are sold individually. Commonly used ALL42118
centering hole and fit axle flanges with up on modifieds and stock cars.
to 6.050" diameter. Drilled for 1/2" studs. ALL42129 ALL42118...... LH Hybrid Caliper Bracket
ALL42129 ..... 2-1/2" Offset, 2.2 Lbs. ALL42119...... RH Hybrid Caliper Bracket
ALL42128 ..... 3" Offset, 2.5 Lbs.
GM 7.5" Rear Caliper Brackets
Steel bolt-on brackets
are used when
converting drum
brake equipped
7.5" GM style rear ends ALL42180 ALL42181
to disc brakes. 1/4" thick
brackets replace the
drum brake backing plates to provide secure mounting
for standard intermediate metric calipers (ALL42083 and
ALL42084).
ALL42180 ..... LH Bracket
ALL42181 ..... RH Bracket
Rocky Wilson
