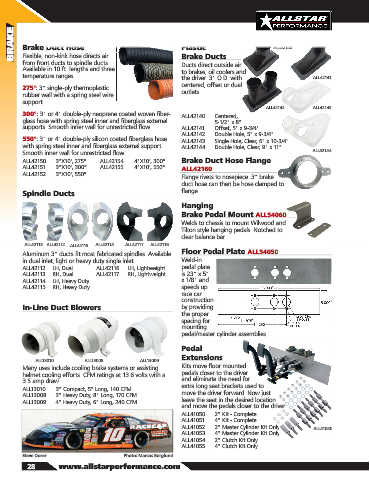

Page 30 - 2019 Allstar Performance Parts and Equipment Catalog

BRAKE Brake Duct Hose Plastic ALL42140

Flexible, non-kink hose directs air
from front ducts to spindle ducts. Brake Ducts
Ducts direct outside air
Available in 10 ft. lengths and three to brakes, oil coolers and
temperature ranges. the driver. 3" O.D. with ALL42141
centered, offset or dual
275°: 3" single-ply thermoplastic outlets.
rubber wall with a spring steel wire
support.
ALL42142 ALL42143
300°: 3" or 4" double-ply neoprene coated woven fiber- ALL42140 ..... Centered,
glass hose with spring steel inner and fiberglass external 5-1/2" x 8"
supports. Smooth inner wall for unrestricted flow. ALL42141 ..... Offset, 5" x 9-3/4"
ALL42142 ..... Double Hole, 5" x 9-3/4"
550°: 3" or 4" double-ply silicon coated fiberglass hose ALL42143 ..... Single Hole, Clear, 6" x 10-3/4"
with spring steel inner and fiberglass external support. ALL42144 ..... Double Hole, Clear, 9" x 11"
Smooth inner wall for unrestricted flow. ALL42144
ALL42150 ..... 3"X10', 275° ALL42154 ...... 4"X10', 300° Brake Duct Hose Flange
ALL42151 ..... 3"X10', 300° ALL42155 ...... 4"X10', 550° ALL42160
ALL42152 ..... 3"X10', 550°
Flange rivets to nosepiece. 3" brake
duct hose can then be hose clamped to
Spindle Ducts flange.

Hanging
Brake Pedal Mount ALL54060
Welds to chassis to mount Wilwood and
Tilton style hanging pedals. Notched to
clear balance bar.

ALL42113 ALL42112 ALL42115 ALL42114 ALL42117 ALL42116

Aluminum 3" ducts fit most fabricated spindles. Availabl e Floor Pedal Plate ALL54050
in dual inlet, light or heavy duty single inlet. Weld-in
pedal plate
ALL42112 .... LH, Dual ALL42116 .....LH, Lightweight
ALL42113 .... RH, Dual ALL42117 .....RH, Lightweight is 23" x 5"
ALL42114.... LH, Heavy Duty x 1/8" and
ALL42115 .... RH, Heavy Duty speeds up
race car
construction
In-Line Duct Blowers by providing
the proper
spacing for
mounting
pedal/master cylinder assemblies.
Pedal
Extensions
ALL13010 ALL13008 ALL13009
Many uses include cooling brake systems or assisting Kits move floor mounted
helmet cooling efforts. CFM ratings at 13.6 volts with a pedals closer to the driver
3.5 amp draw. and eliminate the need for
extra long seat brackets used to
ALL13010...... 3" Compact, 5" Long, 140 CFM move the driver forward. Now just
ALL13008 ..... 3" Heavy Duty, 8" Long, 170 CFM
ALL13009 ..... 4" Heavy Duty, 6" Long, 240 CFM leave the seat in the desired location
and move the pedals closer to the driver.
ALL41050 ..... 2" Kit - Complete
ALL41051 ..... 4" Kit - Complete
ALL41052 ..... 2" Master Cylinder Kit Only ALL41050
ALL41053 ..... 4" Master Cylinder Kit Only
ALL41054 ..... 2" Clutch Kit Only
ALL41055 ..... 4" Clutch Kit Only
Steve Dorer Photo: Marcus Berglund
28 www.allstarperformance.com
