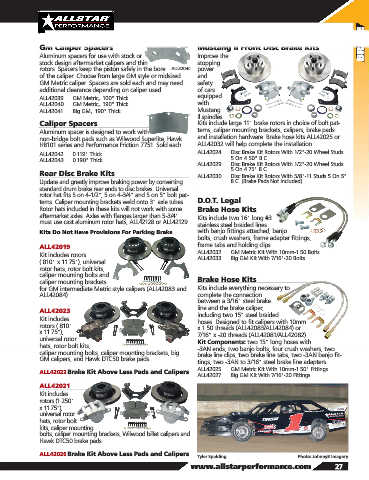

Page 29 - 2019 Allstar Performance Parts and Equipment Catalog

BRAKE

GM Caliper Spacers Mustang II Front Disc Brake Kits
Aluminum spacers for use with stock or Improve the
stock design aftermarket calipers and thin stopping
rotors. Spacers keep the piston safely in the bore ALL42040 power
of the caliper. Choose from large GM style or midsized and
GM Metric caliper. Spacers are sold each and may need safety
additional clearance depending on caliper used. of cars
ALL42039 ..... GM Metric, .100" Thick equipped
ALL42040 ..... GM Metric, .190" Thick with
ALL42041 ..... Big GM, .190" Thick Mustang
ll spindles.
Caliper Spacers Kits include large 11" brake rotors in choice of bolt pat-
Aluminum spacer is designed to work with terns, caliper mounting brackets, calipers, brake pads
non-bridge bolt pads such as Wilwood Superlite, Hawk and installation hardware. Brake hose kits ALL42025 or
HB101 series and Performance Friction 7751. Sold each. ALL42032 will help complete the installation.
ALL42042 ..... 0.119" Thick ALL42024 .... Disc Brake Kit Rotors With 1/2"-20 Wheel Studs
5 On 4.50" B.C.
ALL42043 ..... 0.190" Thick
ALL42029 ..... Disc Brake Kit Rotors With 1/2"-20 Wheel Studs
5 On 4.75" B.C.
Rear Disc Brake Kits ALL42030 ..... Disc Brake Kit Rotors With 5/8"-11 Studs 5 On 5"
Update and greatly improve braking power by converting B.C. (Brake Pads Not Included)
standard drum brake rear ends to disc brakes. Universal
rotor hat fits 5 on 4-1/2", 5 on 4-3/4" and 5 on 5" bolt pat-
terns. Caliper mounting brackets weld onto 3" axle tubes. D.O.T. Legal
Rotor hats included in these kits will not work with some Brake Hose Kits
aftermarket axles. Axles with flanges larger than 5-3/4" Kits include two 16" long #3
must use cast aluminum rotor hats, ALL42128 or ALL42129. stainless steel braided lines
Kits Do Not Have Provisions For Parking Brake with banjo fittings attached, banjo
bolts, crush washers, frame adapter fittings,
ALL42019 frame tabs and holding clips.
Kit includes rotors ALL42032 ..... GM Metric Kit With 10mm-1.50 Bolts
(.810" x 11.75"), universal ALL42033 ..... Big GM Kit With 7/16"-20 Bolts
rotor hats, rotor bolt kits,
caliper mounting bolts and Brake Hose Kits
caliper mounting brackets
for GM intermediate Metric style calipers (ALL42083 and Kits include everything necessary to
ALL42084). complete the connection
between a 3/16" steel brake
line and the brake caliper,
ALL42023 including two 15" steel braided
Kit includes hoses. Designed to fit calipers with 10mm
rotors (.810" x 1.50 threads (ALL42083/ALL42084) or
x 11.75"), 7/16" x -20 threads (ALL42081/ALL42082).
universal rotor Kit Components: two 15" long hoses with
hats, rotor bolt kits, -3AN ends, two banjo bolts, four crush washers, two
caliper mounting bolts, caliper mounting brackets, big brake line clips, two brake line tabs, two -3AN banjo fit-
GM calipers, and Hawk DTC50 brake pads. tings, two -3AN to 3/16" steel brake line adapters.
ALL42025 ..... GM Metric Kit With 10mm-1.50" Fittings
ALL42022 Brake Kit Above Less Pads and Calipers
ALL42027 ..... Big GM Kit With 7/16"-20 Fittings
ALL42021
Kit includes
rotors (1.250"
x 11.75"),
universal rotor
hats, rotor bolt
kits, caliper mounting
bolts, caliper mounting brackets, Wilwood billet calipers and
Hawk DTC50 brake pads.
ALL42020 Brake Kit Above Less Pads and Calipers
Tyler Spalding Photo: JohnnyB Imagery
www.allstarperformance.com 27
