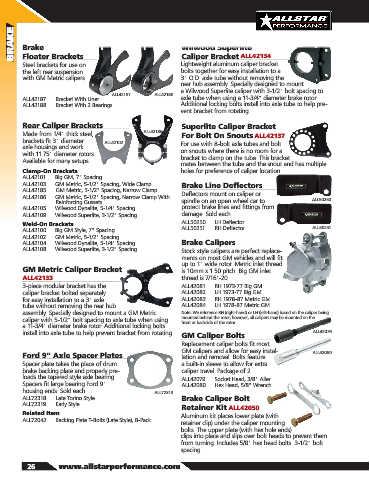

Page 28 - 2019 Allstar Performance Parts and Equipment Catalog

BRAKE Brake Wilwood Superlite

Floater Brackets
Lightweight aluminum caliper bracket
Steel brackets for use on Caliper Bracket ALL42134
the left rear suspension bolts together for easy installation to a
with GM Metric calipers. 3" O.D. axle tube without removing the
rear hub assembly. Specially designed to mount
a Wilwood Superlite caliper with 3-1/2" bolt spacing to
ALL42187 ALL42188
ALL42187 ..... Bracket With Liner axle tube when using a 11-3/4" diameter brake rotor.
ALL42188 ..... Bracket With 2 Bearings Additional locking bolts install into axle tube to help pre-
vent bracket from rotating.

Rear Caliper Brackets Superlite Caliper Bracket
ALL42186
Made from 1/4" thick steel, For Bolt On Snouts ALL42137
brackets fit 3" diameter ALL42102
axle housings and work For use with 8-bolt axle tubes and bolt
with 11.75" diameter rotors. on snouts where there is no room for a
Available for many setups. bracket to clamp on the tube. This bracket
mates between the tube and the snout and has multiple
Clamp-On Brackets holes for preference of caliper location.
ALL42101 .....Big GM, 7" Spacing
ALL42103 .....GM Metric, 5-1/2" Spacing, Wide Clamp Brake Line Deflectors
ALL42185 ..... GM Metric, 5-1/2" Spacing, Narrow Clamp
ALL42186 .....GM Metric, 5-1/2" Spacing, Narrow Clamp With Deflectors mount on caliper or
Reinforcing Gussets spindle on an open wheel car to ALL50250
ALL42105 .....Wilwood Dynalite, 5-1/4" Spacing protect brake lines and fittings from
ALL42109 .....Wilwood Superlite, 3-1/2" Spacing damage. Sold each.
Weld-On Brackets ALL50250 ..... LH Deflector
ALL42100 .....Big GM Style, 7" Spacing ALL50251 ..... RH Deflector ALL50251
ALL42102 .....GM Metric, 5-1/2" Spacing
ALL42104 .....Wilwood Dynalite, 5-1/4" Spacing Brake Calipers
ALL42108 .....Wilwood Superlite, 3-1/2" Spacing Stock style calipers are perfect replace-
ments on most GM vehicles and will fit
up to 1" wide rotor. Metric inlet thread
GM Metric Caliper Bracket is 10mm x 1.50 pitch. Big GM inlet
ALL42133 thread is 7/16"-20.
3-piece modular bracket has the ALL42081 ..... RH 1973-77 Big GM
caliper bracket bolted separately ALL42082 ..... LH 1973-77 Big GM
for easy installation to a 3" axle ALL42083 ..... RH 1978-87 Metric GM
tube without removing the rear hub ALL42084 ..... LH 1978-87 Metric GM
assembly. Specially designed to mount a GM Metric Note: We reference RH (right-hand) or LH (left-hand) based on the caliper being
caliper with 5-1/2" bolt spacing to axle tube when using mounted behind the rotor, however, all calipers may be mounted on the
front or backside of the rotor.
a 11-3/4" diameter brake rotor. Additional locking bolts
install into axle tube to help prevent bracket from rotating. GM Caliper Bolts ALL42079
Replacement caliper bolts fit most
GM calipers and allow for easy instal- ALL42080
Ford 9" Axle Spacer Plates lation and removal. Bolts feature
Spacer plate takes the place of drum a built-in sleeve to allow for extra
brake backing plate and properly pre- caliper travel. Package of 2.
loads the tapered style axle bearing. ALL42079 ..... Socket Head, 3/8" Allen
Spacers fit large bearing Ford 9" ALL42080 ..... Hex Head, 5/8" Wrench
housing ends. Sold each. ALL72318
ALL72318 ..... Late Torino Style Brake Caliper Bolt
ALL72319 ..... Early Style
Retainer Kit ALL42050
Related Item Aluminum kit places lower plate (with
ALL72042 ..... Backing Plate T-Bolts (Late Style), 8-Pack
retainer clip) under the caliper mounting
bolts. The upper plate (with hex hole ends)
clips into place and slips over bolt heads to prevent them
from turning. Includes 5/8" hex head bolts. 3-1/2" bolt
spacing.
