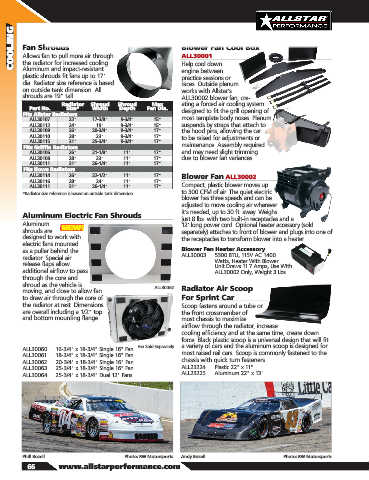

Page 68 - 2019 Allstar Performance Parts and Equipment Catalog

COOLING Fan Shrouds Blower Fan Cool Box

Allows fan to pull more air through
ALL30001
the radiator for increased cooling.
Aluminum and impact-resistant
engine between
plastic shrouds fit fans up to 17" Help cool down
practice sessions or
dia. Radiator size reference is based races. Outside plenum
on outside tank dimension. All works with Allstar’s
shrouds are 19" tall. ALL30002 blower fan, cre-
Radiator Shroud Shroud Max ating a forced air cooling system
Part No. Size* Width Depth Fan Dia.
Fits Allstar Radiators designed to fit the grill opening of
ALL30107 22" 17-3/8" 9-3/4" 15" most template body noses. Plenum
ALL30112 24" 19" 9-3/4" 15" suspends by straps that attach to
ALL30109 26" 20-3/4" 9-3/4" 17" the hood pins, allowing the car
ALL30110 28" 23" 9-3/4" 17" to be raised for adjustments or
ALL30115 31" 25-3/4" 9-3/4" 17"
Fits Griffin Radiators maintenance. Assembly required
ALL30106 26" 21-1/8" 11" 17" and may need slight trimming
ALL30108 28" 23" 11" 17" due to blower fan variances.
ALL30111 31" 26-1/4" 11" 17"
Fits Howe Radiators
ALL30114 26" 22-1/2" 11" 17" Blower Fan ALL30002
ALL30116 28" 24" 11" 17"
ALL30111 31" 26-1/4" 11" 17" Compact, plastic blower moves up
*Radiator size reference is based on outside tank dimension. to 300 CFM of air. The quiet electric
blower has three speeds and can be
adjusted to move cooling air wherever
it’s needed, up to 30 ft. away. Weighs
Aluminum Electric Fan Shrouds
just 8 lbs. with two built-in receptacles and a
Aluminum NEW! 12' long power cord. Optional heater accessory (sold
shrouds are separately) attaches to front of blower and plugs into one of
designed to work with the receptacles to transform blower into a heater.
electric fans mounted
as a puller behind the Blower Fan Heater Accessory
radiator. Special air ALL30003 .... 5300 BTU, 115V AC 1400
release flaps allow Watts, Heater With Blower
Unit Draws 11.7 Amps, Use With
additional airflow to pass ALL30002 Only, Weight 3 Lbs.
through the core and
shroud as the vehicle is ALL30062 Radiator Air Scoop
moving, and close to allow fan
to draw air through the core of For Sprint Car
the radiator at rest. Dimensions Scoop fastens around a tube or
are overall including a 1/2" top the front crossmember of
and bottom mounting flange. most chassis to maximize
airflow through the radiator, increase
cooling efficiency and at the same time, create down
force. Black plastic scoop is a universal design that will fit
Fan Sold Separately a variety of cars and the aluminum scoop is designed for
ALL30060 .... 16-3/4" x 18-3/4" Single 16" Fan
ALL30061 ..... 18-3/4" x 18-3/4" Single 16" Fan most raised rail cars. Scoop is commonly fastened to the
ALL30062 .... 20-3/4" x 18-3/4" Single 16" Fan chassis with quick turn fasteners.
ALL30063 .... 25-3/4" x 18-3/4" Single 16" Fan ALL23224 ..... Plastic 22" x 11"
ALL30064 .... 25-3/4" x 18-3/4" Dual 12" Fans ALL23225 ..... Aluminum 22" x 13"

Phill Bozell Photo: RW Motorsports Andy Bozell Photo: RW Motorsports
66 www.allstarperformance.com
