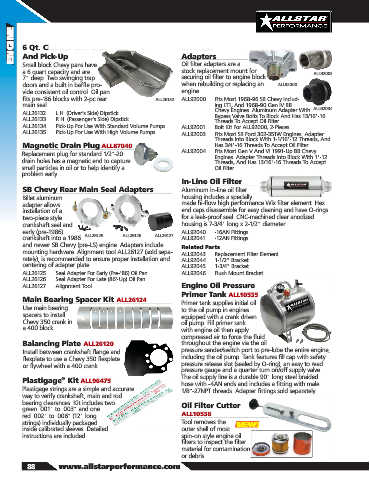

Page 90 - 2019 Allstar Performance Parts and Equipment Catalog

ENGINE 6 Qt. Claimer Oil Pans Oil Filter

And Pick-Up
Oil filter adapters are a
Small block Chevy pans have Adapters
a 6 quart capacity and are stock replacement mount for ALL92003
7" deep. Two swinging trap securing oil filter to engine block
doors and a built in baffle pro- when rebuilding or replacing an ALL92000
vide consistent oil control. Oil pan engine.
fits pre-’86 blocks with 2-pc rear ALL26132 ALL92000 ..... Fits Most 1968-96 SB Chevy Includ-
main seal. ing LT1, And 1968-90 Gen IV BB
Chevy Engines. Aluminum Adapter With ALL92004
ALL26132 ..... L.H. (Driver’s Side) Dipstick Bypass Valve Bolts To Block And Has 13/16"-16
ALL26133 ..... R.H. (Passenger’s Side) Dipstick Threads To Accept Oil Filter
ALL26134 ..... Pick-Up For Use With Standard Volume Pumps ALL92001 ..... Bolt Kit For ALL92000, 2-Pieces
ALL26135 ..... Pick-Up For Use With High Volume Pumps ALL92003 ..... Fits Most SB Ford 302-351W Engines. Adapter
Threads Into Block With 1-1/16"-12 Threads, And
Magnetic Drain Plug ALL87040 Has 3/4"-16 Threads To Accept Oil Filter
ALL92004 ..... Fits Most Gen V And VI 1991-Up BB Chevy
Replacement plug for standard 1/2"-20 Engines. Adapter Threads Into Block With 1"-12
drain holes has a magnetic end to capture Threads, And Has 13/16"-16 Threads To Accept
small particles in oil or to help identify a Oil Filter
problem early.
In-Line Oil Filter
SB Chevy Rear Main Seal Adapters Aluminum in-line oil filter
Billet aluminum housing includes a specially
adapter allows made hi-flow high performance Wix filter element. Hex
installation of a end caps disassemble for easy cleaning and have O-rings
two-piece style for a leak-proof seal. CNC-machined clear anodized
crankshaft seal and housing is 7-3/4" long x 2-1/2" diameter.
early (pre-1986) ALL26125 ALL26126 ALL26127 ALL92040 ..... -16AN Fittings
crankshaft into a 1986 ALL92041 ..... -12AN Fittings
and newer SB Chevy (pre-LS) engine. Adapters include Related Parts
mounting hardware. Alignment tool ALL26127 (sold sepa- ALL92043 ..... Replacement Filter Element
rately), is recommended to ensure proper installation and ALL92044 ..... 1-1/2" Bracket
centering of adapter plate. ALL92045 ..... 1-3/4" Bracket
ALL26125 ..... Seal Adapter For Early (Pre-’86) Oil Pan ALL92046 ..... Flush Mount Bracket
ALL26126 ..... Seal Adapter For Late (86'-Up) Oil Pan
ALL26127 ..... Alignment Tool Engine Oil Pressure
Primer Tank ALL10535
Main Bearing Spacer Kit ALL26124
Primer tank supplies initial oil
Use main bearing to the oil pump in engines
spacers to install equipped with a crank driven
Chevy 350 crank in oil pump. Fill primer tank
a 400 block. with engine oil then apply
compressed air to force the fluid
Balancing Plate ALL26120 throughout the engine via the oil
Install between crankshaft flange and pressure sender/switch port to pre-lube the entire engine,
flexplate to use a Chevy 350 flexplate including the oil pump. Tank features fill cap with safety
or flywheel with a 400 crank. pressure release slot (sealed by O-ring), an easy to read
pressure gauge and a quarter turn on/off supply valve.
The oil supply line is a durable 90" long steel braided
®
Plastigage Kit ALL96475
hose with -4AN ends and includes a fitting with male
Plastigage strings are a simple and accurate 1/8"-27NPT threads. Adapter fittings sold separately.
way to verify crankshaft, main and rod
bearing clearances. Kit includes two Oil Filter Cutter
green .001" to .003" and one
red .002" to .006" (12" long ALL10538
strings) individually packaged Tool removes the NEW!
inside calibrated sleeves. Detailed outer shell of most
instructions are included. spin-on style engine oil
filters to inspect the filter
material for contamination
or debris.
