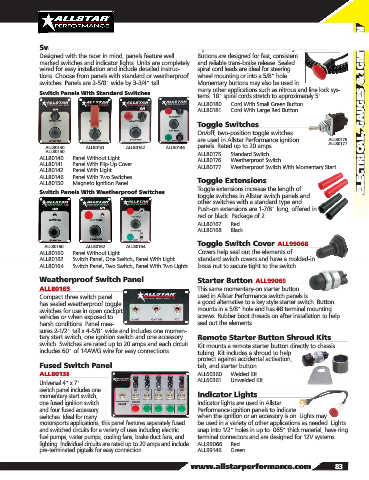

Page 85 - 2019 Allstar Performance Parts and Equipment Catalog

Switch Panels Spiral Corded Momentary Buttons
Designed with the racer in mind, panels feature well Buttons are designed for fast, consistent
marked switches and indicator lights. Units are completely and reliable trans-brake release. Sealed
wired for easy installation and include detailed instruc- spiral cord leads are ideal for steering
tions. Choose from panels with standard or weatherproof wheel mounting or into a 5/8" hole.
switches. Panels are 2-5/8" wide by 3-3/4" tall. Momentary buttons may also be used in
many other applications such as nitrous and line lock sys-
Switch Panels With Standard Switches
tems. 18" spiral cords stretch to approximately 5'.
ALL80180 ..... Cord With Small Green Button
ALL80181 ..... Cord With Large Red Button ELECTRICAL, GAUGES & IGNITION

Toggle Switches
On/off, two-position toggle switches
are used in Allstar Performance ignition ALL80176
ALL80177
ALL80140 ALL80141 ALL80142 ALL80146 panels. Rated up to 20 amps.
ALL80150 ALL80175 ..... Standard Switch
ALL80140 ..... Panel Without Light ALL80176 ..... Weatherproof Switch
ALL80141 ..... Panel With Flip-Up Cover ALL80177 ..... Weatherproof Switch With Momentary Start
ALL80142 ..... Panel With Light
ALL80146 ..... Panel With Two Switches Toggle Extensions
ALL80150 ..... Magneto Ignition Panel
Toggle extensions increase the length of
Switch Panels With Weatherproof Switches
toggle switches in Allstar switch panels and
other switches with a standard type end.
Push-on extensions are 1-7/8" long, offered in
red or black. Package of 2.
ALL80167 ..... Red
ALL80168 ..... Black

Toggle Switch Cover ALL99068
ALL80160 ALL80162 ALL80164
ALL80160 ..... Panel Without Light Covers help seal out the elements of
ALL80162 ..... Switch Panel, One Switch, Panel With Light standard switch covers and have a molded-in
ALL80164 ..... Switch Panel, Two Switch, Panel With Two Lights brass nut to secure tight to the switch.
Weatherproof Switch Panel Starter Button ALL99069
ALL80165 This same momentary-on starter button
Compact three switch panel used in Allstar Performance switch panels is
has sealed weatherproof toggle a good alternative to a key style starter switch. Button
switches for use in open cockpit mounts in a 5/8" hole and has #8 terminal mounting
vehicles or when exposed to screws. Rubber boot threads on after installation to help
harsh conditions. Panel mea- seal out the elements.
sures 2-1/2" tall x 4-5/8" wide and includes one momen-
tary start switch, one ignition switch and one accessory Remote Starter Button Shroud Kits
switch. Switches are rated up to 20 amps and each circuit Kit mounts a remote starter button directly to chassis
includes 60" of 14AWG wire for easy connections. tubing. Kit includes a shroud to help
protect against accidental activation,
Fused Switch Panel tab, and starter button.
ALL80138 ALL60360 ..... Welded Kit
Universal 4" x 7" ALL60361 ..... Unwelded Kit
switch panel includes one
momentary start switch, Indicator Lights
one fused ignition switch Indicator lights are used in Allstar
and four fused accessory Performance ignition panels to indicate
switches. Ideal for many when the ignition or an accessory is on. Lights may
motorsports applications, this panel features separately fused be used in a variety of other applications as needed. Lights
and switched circuits for a variety of uses including electric snap into 1/2" holes in up to .065" thick material, have ring
fuel pumps, water pumps, cooling fans, brake duct fans, and terminal connectors and are designed for 12V systems.
lighting. Individual circuits are rated up to 20 amps and include ALL99066 .... Red
pre-terminated pigtails for easy connection. ALL99146 ..... Green

www.allstarperformance.com 83
