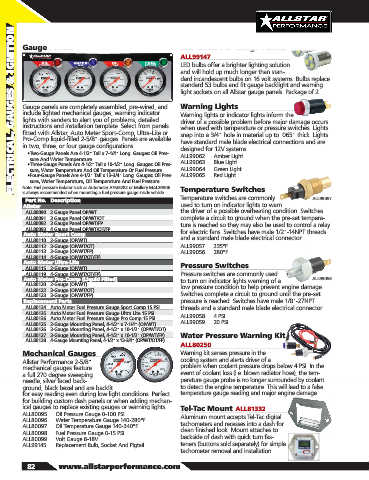

Page 84 - 2019 Allstar Performance Parts and Equipment Catalog

ELECTRICAL, GAUGES & IGNITION

Gauge Panels LED Bulbs For Gauge Panels
ALL99147
LED bulbs offer a brighter lighting solution
and will hold up much longer than stan-
dard incandescent bulbs on 16 volt systems. Bulbs replace
standard 53 bulbs and fit gauge backlight and warning
light sockets on all Allstar gauge panels. Package of 2.

Gauge panels are completely assembled, pre-wired, and Warning Lights
include lighted mechanical gauges, warning indicator Warning lights or indicator lights inform the
lights with senders to alert you of problems, detailed driver of a possible problem before major damage occurs
instructions and installation template. Select from panels when used with temperature or pressure switches. Lights
fitted with Allstar, Auto Meter Sport-Comp, Ultra-Lite or snap into a 3/4" hole in material up to .065" thick. Lights
Pro-Comp liquid-filled 2-5/8" gauges. Panels are available have standard male blade electrical connections and are
in two, three, or four gauge configurations.
designed for 12V systems.
• Two-Gauge Panels Are 4-1/2" Tall x 7-1/4" Long. Gauges: Oil Pres-
sure And Water Temperature ALL99062..... Amber Light
• Three-Gauge Panels Are 4-1/2" Tall x 10-1/2" Long. Gauges: Oil Pres- ALL99063..... Blue Light
sure, Water Temperature And Oil Temperature Or Fuel Pressure ALL99064 .... Green Light
• Four-Gauge Panels Are 4-1/2" Tall x 13-3/4" Long. Gauges: Oil Pres- ALL99065 ..... Red Light
sure, Water Temperature, Oil Temperature And Fuel Pressure.
Note: Fuel pressure isolator such as Autometer ATM5282 or Mallory MAL29806 Temperature Switches
is always recommended when mounting a fuel pressure gauge inside vehicle.
Temperature switches are commonly ALL99057
Part No. Description
Allstar used to turn on indicator lights to warn
ALL80090 2 Gauge Panel OP/WT the driver of a possible overheating condition. Switches
ALL80091 3 Gauge Panel OP/WT/OT complete a circuit to ground when the pre-set tempera-
ALL80092 3 Gauge Panel OP/WT/FP ture is reached so they may also be used to control a relay
ALL80093 4 Gauge Panel OP/WT/OT/FP for electric fans. Switches have male 1/2"-14NPT threads
Auto Meter Sport Comp
ALL80110 2-Gauge (OP/WT) and a standard male blade electrical connector.
ALL80112 3-Gauge (OP/WT/OT) ALL99057 ..... 235°F
ALL80113 3-Gauge (OP/WT/FP) ALL99056 ..... 280°F
ALL80114 4-Gauge (OP/WT/OT/FP)
Auto Meter Ultra-Lite
ALL80115 2-Gauge (OP/WT) Pressure Switches
ALL80119 4-Gauge (OP/WT/OT/FP) Pressure switches are commonly used
Auto Meter Pro-Comp (Liquid Filled) to turn on indicator lights warning of a ALL99058
ALL80120 2-Gauge (OP/WT)
ALL80122 3-Gauge (OP/WT/OT) low pressure condition to help prevent engine damage.
ALL80123 3-Gauge (OP/WT/FP) Switches complete a circuit to ground until the pre-set
Replacement Parts pressure is reached. Switches have male 1/8"-27NPT
ALL80134 Auto Meter Fuel Pressure Gauge Sport Comp 15 PSI threads and a standard male blade electrical connector.
ALL80135 Auto Meter Fuel Pressure Gauge Ultra Lite 15 PSI
ALL80136 Auto Meter Fuel Pressure Gauge Pro Comp 15 PSI ALL99058 ..... 4 PSI
ALL80125 2-Gauge Mounting Panel, 4-1/2" x 7-1/4" (OP/WT) ALL99059 ..... 20 PSI
ALL80126 3-Gauge Mounting Panel, 4-1/2" x 10-1/2" (OP/WT/OT)
ALL80127 3-Gauge Mounting Panel, 4-1/2" x 10-1/2" (OP/WT/FP) Water Pressure Warning Kit
ALL80128 4-Gauge Mounting Panel, 4-1/2" x 13-3/4" (OP/WT/OT/FP)
ALL80250
Mechanical Gauges Warning kit senses pressure in the
Allstar Performance 2-5/8" cooling system and alerts driver of a
mechanical gauges feature problem when coolant pressure drops below 4 PSI. In the
a full 270 degree sweeping event of coolant loss (i.e. blown radiator hose), the tem-
needle, silver faced back- perature gauge probe is no longer surrounded by coolant
ground, black bezel and are backlit to detect the engine temperature. This will lead to a false
for easy reading even during low light conditions. Perfect temperature gauge reading and major engine damage.
for building custom dash panels or when adding mechan-
ical gauges to replace existing gauges or warning lights. Tel-Tac Mount ALL81332
ALL80095..... Oil Pressure Gauge 0-100 PSI Aluminum mount accepts Tel-Tac digital
ALL80096 .... Water Temperature Gauge 140-280°F
ALL80097 ..... Oil Temperature Gauge 140-340°F tachometers and recesses into a dash for
ALL80098 .... Fuel Pressure Gauge 0-15 PSI clean finished look. Mount attaches to
ALL80099 .... Volt Gauge 8-18V backside of dash with quick turn fas-
ALL99145 ..... Replacement Bulb, Socket And Pigtail teners (buttons sold separately) for simple
tachometer removal and installation.
