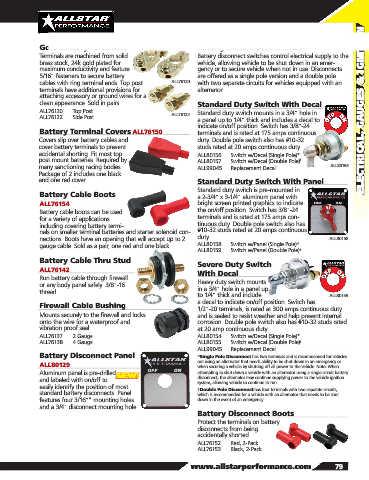

Page 81 - 2019 Allstar Performance Parts and Equipment Catalog
P. 81
Gold Battery Terminals Battery Disconnect Switches
Terminals are machined from solid Battery disconnect switches control electrical supply to the
brass stock, 24k gold plated for vehicle, allowing vehicle to be shut down in an emer-
maximum conductivity and feature gency or to secure vehicle when not in use. Disconnects
5/16" fasteners to secure battery are offered as a single pole version and a double pole
cables with ring terminal ends. Top post ALL76120 with two separate circuits for vehicles equipped with an
terminals have additional provisions for alternator.
attaching accessory or ground wires for a
clean appearance. Sold in pairs. Standard Duty Switch With Decal
ALL76120 ..... Top Post ALL76122 Standard duty switch mounts in a 3/4" hole in ELECTRICAL, GAUGES & IGNITION
ALL76122 ..... Side Post
a panel up to 1/4" thick and includes a decal to
indicate on/off position. Switch has 3/8"-24
Battery Terminal Covers ALL76150 terminals and is rated at 175 amps continuous
Covers slip over battery cables and duty. Double pole switch also has #10-32
cover battery terminals to prevent studs rated at 20 amps continuous duty.
accidental shorting. Fit most top ALL80156 ..... Switch w/Decal (Single Pole)*
post mount batteries. Required by ALL80157 ..... Switch w/Decal (Double Pole) †
many sanctioning racing bodies. ALL99045 ..... Replacement Decal ALL80156
Package of 2 includes one black
and one red cover. Standard Duty Switch With Panel
Standard duty switch is pre-mounted in
Battery Cable Boots a 2-3/4" x 3-1/4" aluminum panel with
ALL76154 bright screen printed graphics to indicate
Battery cable boots can be used the on/off position. Switch has 3/8"-24
for a variety of applications terminals and is rated at 175 amps con-
including covering battery termi- tinuous duty. Double pole switch also has
nals on smaller terminal batteries and starter solenoid con- #10-32 studs rated at 20 amps continuous
nections. Boots have an opening that will accept up to 2 duty. ALL80158
gauge cable. Sold as a pair, one red and one black. ALL80158 ..... Switch w/Panel (Single Pole)*
ALL80159 ..... Switch w/Panel (Double Pole) †
Battery Cable Thru Stud
Severe Duty Switch
ALL76142 With Decal
Run battery cable through firewall
or any body panel safely. 3/8"-16 Heavy duty switch mounts
thread. in a 3/4" hole in a panel up
to 1/4" thick and include ALL80155
a decal to indicate on/off position. Switch has
Firewall Cable Bushing 1/2"-20 terminals, is rated at 300 amps continuous duty
Mounts securely to the firewall and locks and is sealed to resist weather and help prevent internal
onto the wire for a waterproof and corrosion. Double pole switch also has #10-32 studs rated
vibration proof seal. at 20 amp continuous duty.
ALL76137 ..... 2 Gauge ALL80154 ..... Switch w/Decal (Single Pole)*
ALL76138 ..... 4 Gauge ALL80155 ..... Switch w/Decal (Double Pole) †
ALL99045 ..... Replacement Decal
Battery Disconnect Panel *Single Pole Disconnect has two terminals and is recommended for vehicles
not using an alternator that needs ability to be shut down in an emergency or
ALL80129
when securing a vehicle by shutting off all power to the vehicle. Note: When
Aluminum panel is pre-drilled NEW! attempting to shut down a vehicle with an alternator using a single circuit battery
and labeled with on/off to disconnect, the alternator may continue supplying power to the vehicle ignition
system, allowing vehicle to continue to run.
easily identify the position of most †Double Pole Disconnect has four terminals with two separate circuits,
standard battery disconnects. Panel which is recommended for a vehicle with an alternator that needs to be shut
features four 3/16"” mounting holes down in the event of an emergency.
and a 3/4" disconnect mounting hole.
Battery Disconnect Boots
Protect the terminals on battery
disconnects from being
accidentally shorted.
ALL76152 ..... Red, 2-Pack
ALL76153 ..... Black, 2-Pack
www.allstarperformance.com 79
