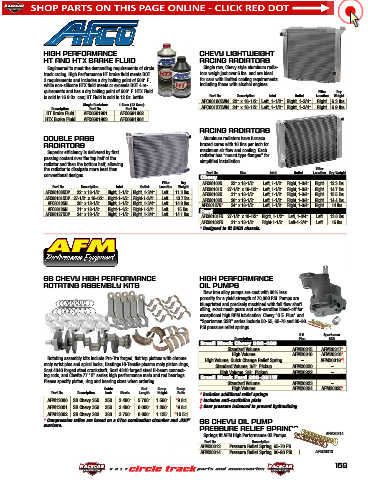

Page 160 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

HIGH PERFORMANCE CHEVY LIGHTWEIGHT
HT AND HTX BRAKE FLUID RACING RADIATORS
Engineered to meet the demanding requirements of circle Single row, Chevy style aluminum radia-
track racing. High Performance HT brake fluid meets DOT tors weigh just over 6 lbs. and are ideal
3 requirements and includes a dry boiling point of 500° F., for cars with limited cooling requirements
while non-silicone HTX fluid meets or exceeds DOT 4 re- including those with alcohol engines.
quirements and has a dry boiling point of 600° F. HTX Fluid Filler Dry
is sold in 16.9 Oz. can; HT Fluid is sold in 12 Oz. bottle. Part No. Description Inlet Outlet Location Weight
Single Container 1 Case (12 Cans) AFC80100LWN 22" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 6.3 lbs.
Description Part No. Part No. AFC80127LWN 24" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 6.9 lbs.
HT Brake Fluid AFC6691901 AFC6691902
HTX Brake Fluid AFC6691903 AFC6691904
RACING RADIATORS
DOUBLE PASS Aluminum radiators have furnace
RADIATORS brazed cores with 16 fins per inch for
Superior efficiency is delivered by first maximum air flow and cooling. Each
passing coolant over the top half of the radiator has “mount type flanges” for
radiator and then the bottom half, allowing simplified installation.
Filler
the radiator to dissipate more heat than Part No. Size Inlet Outlet Location Dry Weight
conventional designs. Chevy
Filler Dry AFC80100N 22" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 12.3 lbs.
Part No. Description Inlet Outlet Location Weight AFC80101N 27-1/2" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 14.7 lbs.
AFC80100NDP 22" x 18-1/2" Right, 1-1/2" Right, 1-3/4" Left 11.3 lbs. AFC80102N 31" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 15.5 lbs.
AFC80101NDP 27-1/2" x 18-1/2" Right-1-1/2" Right-1-3/4" Left 13.7 lbs AFC80103N 26" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 14.4 lbs.
AFC80125N 26" x 18-1/2" Right, 1-1/2" Right, 1-3/4" Left 14.9 lbs. AFC80127N* 24" x 18-1/2" Left, 1-1/2" Right, 1-3/4" Right 14 lbs.
AFC80126N 31" x 18-1/2" Right-1-1/2" Right-1-3/4" Left 15 lbs
AFC80127NDP 24" x 18-1/2" Right, 1-1/2" Right, 1-3/4" Left 14.1 lbs. Ford
AFC80101FN 27-1/2" x 18-1/2" Right, 1-1/2" Left, 1-3/4" Left 13.6 lbs.
AFC80102FN 31" x 18-1/2" Right-1-1/2" Left-1-3/4" Left 15 lbs.
* Designed to fit IMCA chassis.

SB CHEVY HIGH PERFORMANCE HIGH PERFORMANCE
ROTATING ASSEMBLY KITS OIL PUMPS
New iron alloy pumps are cast with 80% less
porosity for a yield strength of 70,000 PSI. Pumps are
blueprinted and precisely machined with full flow shaft
oiling, exact mesh gears and anti-aeration bleed-off for
exceptional high RPM lubrication. Chevy “O.E. Plus” and
“Sportsman SSR” series include 50-55, 65-70 and 80-90
PSI pressure relief springs.
O.E. Sportsman
Description Plus SSR
Small Block Chevy 262-400
Standard Volume AFM20315 AFM20317*
High Volume AFM20316 AFM20318*
Rotating assembly kits include Pro-Tru forged, flat top pistons with chrome High Volume, Quick Change Relief Spring – AFM20319* †
moly wrist pins and spiral locks, Hastings Hi-Tensile plasma moly piston rings, Standard Volume, 3/4" Pickup AFM20320 –
Scat 4340 forged steel crankshaft, Scat 4340 forged steel H-beam connect- High Volume, 3/4" Pickup AFM20322 –
ing rods, and Clevite 77 “H” series high performance main and rod bearings. Small Block Ford 289-351W
Please specify piston, ring and bearing sizes when ordering. Standard Volume AFM20323 –
Cubic Rod Comp. Comp. High Volume AFM20324 AFM20325 ‡
Part No. Description Inch Stroke Length Height Ratio * Includes additional relief springs
AFM13000 SB Chevy 350 350 3.480" 5.700" 1.560" *9.8:1 † Includes anti-cavitation plate
AFM13001 SB Chevy 350 350 3.480" 6.000" 1.260" *9.8:1 ‡ Gear pressure balanced to prevent hydraulicing
AFM13002 SB Chevy 383 383 3.750" 6.000" 1.125" *10.5:1
* Compression ratios are based on a 67cc combustion chamber and .030" SB CHEVY OIL PUMP
overbore.
PRESSURE RELIEF SPRINGS
Springs fit AFM High Performance Oil Pumps. AFM20314
Part No. Description
AFM20313 Pressure Relief Spring, 65-70 PSI
AFM20314 Pressure Relief Spring, 80-90 PSI AFM20313
