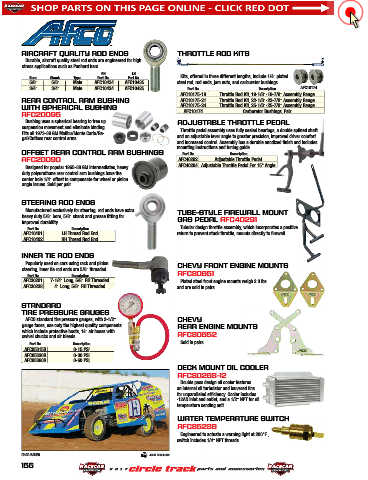

Page 157 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

AIRCRAFT QUALITY ROD ENDS THROTTLE ROD KITS
Durable, aircraft quality steel rod ends are engineered for high
stress applications such as Panhard bars.
RH LH
Bore Shank Type Part No. Part No. Kits, offered in three different lengths, include 1/4" plated
5/8" 5/8" Male AFC10434 AFC10435 steel rod, rod ends, jam nuts, and carburetor bushings.
3/4" 3/4" Male AFC10424 AFC10425 Part No. Description AFC10174
AFC10175-18 Throttle Rod Kit, 19-1/8"-19-7/8" Assembly Range
REAR CONTROL ARM BUSHING AFC10175-21 Throttle Rod Kit, 22-1/8"-22-7/8" Assembly Range
WITH SPHERICAL BUSHING AFC10175-24 Throttle Rod Kit, 25-1/8"-25-7/8" Assembly Range
AFC20095 AFC10174 Carburetor Bushings, Pair
Bushing uses a spherical bearing to free up ADJUSTABLE THROTTLE PEDAL
suspension movement and eliminate binding. Throttle pedal assembly uses fully sealed bearings, a double splined shaft
Fits all 1973-88 GM Malibu/Monte Carlo/Re- and an adjustable lever angle to greater precision, improved driver comfort
gal/Cutlass rear control arms.
and increased control. Assembly has a durable anodized finish and includes
mounting instructions and tuning guide.
OFFSET REAR CONTROL ARM BUSHINGS Part No. Description
AFC20090 AFC40292 Adjustable Throttle Pedal
Designed for popular 1965-88 GM intermediates, heavy AFC40294 Adjustable Throttle Pedal For 15° Angle
duty polyurethane rear control arm bushings have the
center hole 1/4" offset to compensate for wheel or pinion
angle issues. Sold per pair.

STEERING ROD ENDS
Manufactured exclusively for steering, rod ends have extra
heavy duty 5/8" bore, 5/8" shank and grease fitting for TUBE-STYLE FIREWALL MOUNT
improved durability. GAS PEDAL AFC40291
Part No. Description Tubular design throttle assembly, which incorporates a positive
AFC10401 LH Thread Rod End return to prevent stuck throttle, mounts directly to firewall.
AFC10402 RH Thread Rod End

INNER TIE ROD ENDS
Popularly used on cars using rack and pinion
steering, inner tie rod ends are 5/8" threaded. CHEVY FRONT ENGINE MOUNTS
Part No. Description AFC80651
AFC30201 7-1/4" Long, 5/8" RH Threaded Plated steel front engine mounts weigh 2.3 lbs.
AFC30238 4" Long, 5/8" RH Threaded and are sold in pairs.

STANDARD
TIRE PRESSURE GAUGES
AFCO standard tire pressure gauges, with 2-1/2" CHEVY
gauge faces, use only the highest quality components REAR ENGINE MOUNTS
which include protective boots, 14" air hoses with
swivel chucks and air bleeds. AFC80652
Part No. Description Sold in pairs.
AFC85315R 0-15 PSI
AFC85330R 0-30 PSI
AFC85360R 0-60 PSI
DECK MOUNT OIL COOLER
AFC80268-12
Double pass design oil cooler features
an internal oil turbulator and louvered fins
for unparalleled efficiency. Cooler includes
-12AN inlet and outlet, and a 1/2" NPT for oil
temperature sending unit.
WATER TEMPERATURE SWITCH
AFC85286
Engineered to actuate a warning light at 200°F.,
switch includes 1/4" NPT threads.

CHAD BAUER JOHN BERGLUND
156
