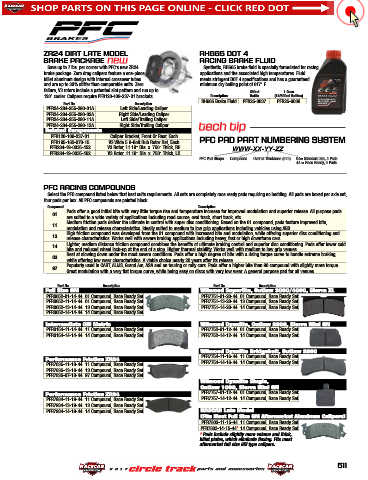

Page 512 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

ZR24 DIRT LATE MODEL RH665 DOT 4
BRAKE PACKAGE RACING BRAKE FLUID
Save up to 7 lbs. per corner with PFC’s new ZR24 Synthetic, RH665 brake fluid is specially formulated for racing
brake package. Zero drag calipers feature a one-piece applications and the associated high temperatures. Fluid
billet aluminum design with internal crossover tubes meets stringent DOT 4 specifications and has a guaranteed
and are up to 30% stiffer than comparable units. Zero minimum dry boiling point of 617° F.
failure, V3 rotors include a patented slot pattern and run up to 500ml 1 Case
120° cooler. Calipers require PFR120-109-237-01 brackets. Description Bottle (12/500ml Bottles)
Part No. Description RH665 Brake Fluid PFR25-0037 PFR25-0038
PFR24-284-255-290-01A Left Side/Leading Caliper
PFR24-284-255-290-02A Right Side/Leading Caliper
PFR24-284-255-290-11A Left Side/Trailing Caliper
PFR24-284-255-290-12A Right Side/Trailing Caliper
Related Components
PFR120-109-237-01 Caliper Bracket, Front Or Rear, Each
PFR195-162-070-15 V3 Wide 5 8-Bolt Hub Rotor Hat, Each PFC PAD PART NUMBERING SYSTEM
PFR284-19-0035-452 V3 Rotor, 11.19" Dia. x .750" Thick, RH WWW-XX-YY-ZZ
PFR284-19-0035-462 V3 Rotor, 11.19" Dia. x .750" Thick, LH
PFC Pad Shape Compound Overall Thickness (mm) 04= Standard Set, 4 Pads
44 = Race Ready, 4 Pads

PFC RACING COMPOUNDS
Select the PFC compound listed below that best suits requirements. All sets are completely race ready pads requiring no bedding. All pads are boxed per axle set,
four pads per box. All PFC compounds are painted black.
Compound Description
Pads offer a good initial bite with very little torque rise and temperature increase for improved modulation and superior release. All purpose pads
01
are suited to a wide variety of applications including road course, oval track, short track, etc.
Medium friction pads deliver the ultimate in control with super disc conditioning. Based on the 01 compound, pads feature improved bite,
11
modulation and release characteristics. Ideally suited to medium to low grip applications including vehicles using ABS.
High friction compound was developed from the 01 compound with increased bite and modulation, while offering superior disc conditioning and
13
release characteristics. Works well with severe braking applications including heavy, fast or high downforce cars.
14 Lighter, medium distance friction compound combines the benefits of ultimate braking control and superior disc conditioning. Pads offer lower cold
bite and reduced wheel lock-up at the end of a stop. Higher thermal stability. Works well with medium to low grip venues.
Best at slowing down under the most severe conditions. Pads offer a high degree of bite with a rising torque curve to handle extreme braking,
83
while offering low wear characteristics. A viable choice nearly 20 years after its release.
Popularly used in CART, ALMS, Grand Am, ASA and on touring or rally cars. Pads offer a higher bite than 90 compound with slightly more torque.
97 Great modulation with a very flat torque curve, while being easy on discs with very low wear. A general purpose pad for all venues.
v
Part No. Description Part No. Description
Full Size GM Wilwood Superlite, Outlaw 3000/4000, Sierra XL
PFR0052-01-14-44 01 Compound, Race Ready Set PFR7751-01-20-44 01 Compound, Race Ready Set
PFR0052-11-14-44 01 Compound, Race Ready Set PFR7751-13-20-44 13 Compound, Race Ready Set
PFR0052-13-14-44 13 Compound, Race Ready Set PFR7751-14-20-44 14 Compound, Race Ready Set
PFR0052-14-14-44 14 Compound, Race Ready Set
Intermediate GM Metric Wilwood Dynalite, Outlaw 2000, Sierra Mini GN
PFR0154-11-14-44 11 Compound, Race Ready Set PFR7752-01-12-44 01 Compound, Race Ready Set
PFR0154-14-14-44 14 Compound, Race Ready Set PFR7752-14-12-44 14 Compound, Race Ready Set

Wilwood Dynalite Bridgebolt, Outlaw 2800
Performance Friction ZR24 PFR7754-11-16-44 11 Compound, Race Ready Set
PFR7835-11-18-44 11 Compound, Race Ready Set PFR7754-14-16-44 14 Compound, Race Ready Set
PFR7835-13-18-44 13 Compound, Race Ready Set
PFR7835-97-18-44 97 Compound, Race Ready Set
Wilwood Dynalite Single,
Outlaw 1000, Sierra Mini GN
Performance Friction ZR34 PFR7757-01-12-44 01 Compound, Race Ready Set
PFR7934-11-19-44 11 Compound, Race Ready Set PFR7757-14-12-44 14 Compound, Race Ready Set
PFR7934-13-19-44 13 Compound, Race Ready Set
PFR7934-14-19-44 14 Compound, Race Ready Set NASCAR Late Model
(Fits Most Full Size GM Aftermarket Aluminum Calipers)
PFR7803-11-15-44 11 Compound, Race Ready Set
PFR7803-14-15-44* 14 Compound, Race Ready Set
* Pads include slightly more volume and thick,
billet plates, which eliminate flexing. Fits most
aftermarket full size GM type calipers.
