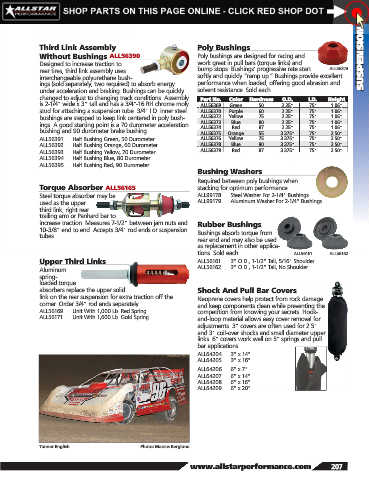

Page 209 - 2020 Allstar Performance Parts and Equipment Catalog

Third Link Assembly Poly Bushings
Without Bushings ALL56390 Poly bushings are designed for racing and SUSPENSION
Designed to increase traction to work great in pull bars (torque links) and
rear tires, third link assembly uses bump stops. Bushings’ progressive rate start ALL56374
interchangeable polyurethane bush- softly and quickly “ramp up.” Bushings provide excellent
ings (sold separately, two required) to absorb energy performance when loaded, offering good abrasion and
under acceleration and braking. Bushings can be quickly solvent resistance. Sold each.
changed to adjust to changing track conditions. Assembly Part No. Color Hardness O.D. I.D. Height
is 2-1/4" wide x 3" tall and has a 3/4"-16 RH chrome moly ALL56369 Green 50 2.25" .75" 1.06"
stud for attaching a suspension tube. 3/4" I.D. inner steel ALL56370 Purple 60 2.25" .75" 1.06"
bushings are stepped to keep link centered in poly bush- ALL56372 Yellow 75 2.25" .75" 1.06"
ings. A good starting point is a 70 durometer acceleration ALL56373 Blue 80 2.25" .75" 1.06"
87
Red
ALL56374
2.25"
1.06"
.75"
bushing and 90 durometer brake bushing. ALL56375 Orange 55 3.375" .75" 2.50"
ALL56391 ..... Half Bushing Green, 50 Durometer ALL56376 Yellow 75 3.375" .75" 2.50"
ALL56392 ..... Half Bushing Orange, 60 Durometer ALL56378 Blue 80 3.375" .75" 2.50"
ALL56393 ..... Half Bushing Yellow, 70 Durometer ALL56379 Red 87 3.375" .75" 2.50"
ALL56394 ..... Half Bushing Blue, 80 Durometer
ALL56395 ..... Half Bushing Red, 90 Durometer
Bushing Washers
Required between poly bushings when
Torque Absorber ALL56165 stacking for optimum performance.
Steel torque absorber may be ALL99178 ..... Steel Washer For 2-1/4" Bushings
used as the upper ALL99179 ..... Aluminum Washer For 2-1/4" Bushings
third link, right rear
trailing arm or Panhard bar to
increase traction. Measures 7-1/2" between jam nuts and Rubber Bushings
10-3/8" end to end. Accepts 3/4" rod ends or suspension Bushings absorb torque from
tubes.
rear end and may also be used
as replacement in other applica-
tions. Sold each. ALL56161 ALL56162
Upper Third Links ALL56161 ..... 3" O.D., 1-1/2" Tall, 5/16" Shoulder
Aluminum ALL56162 ..... 3" O.D., 1-1/2" Tall, No Shoulder
spring-
loaded torque
absorbers replace the upper solid Shock And Pull Bar Covers
link on the rear suspension for extra traction off the Neoprene covers help protect from rock damage
corner. Order 3/4" rod ends separately.
and keep components clean while preventing the
ALL56169 ..... Unit With 1,000 Lb. Red Spring competition from knowing your secrets. Hook-
ALL56171 ..... Unit With 1,600 Lb. Gold Spring and-loop material allows easy cover removal for
adjustments. 3" covers are often used for 2.5"
and 3" coil-over shocks and small diameter upper
links. 6" covers work well on 5" springs and pull
bar applications.
ALL64204 ..... 3" x 14"
ALL64205 ..... 3" x 16"
ALL64206 ..... 6" x 7"
ALL64207 ..... 6" x 14"
ALL64208 ..... 6" x 16"
ALL64209 ..... 6" x 20"

Tanner English Photo: Marcus Berglund

www.allstarperformance.com 207
