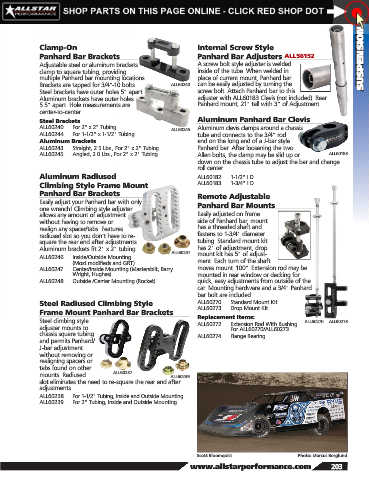

Page 205 - 2020 Allstar Performance Parts and Equipment Catalog

Clamp-On Internal Screw Style
Panhard Bar Brackets Panhard Bar Adjusters ALL56152 SUSPENSION
Adjustable steel or aluminum brackets A screw bolt style adjuster is welded
clamp to square tubing, providing inside of the tube. When welded in
multiple Panhard bar mounting locations. place of current mount, Panhard bar
Brackets are tapped for 3/4"-10 bolts. ALL60240 can be easily adjusted by turning the
Steel brackets have outer holes 5" apart. screw bolt. Attach Panhard bar to this
Aluminum brackets have outer holes adjuster with ALL60183 Clevis (not included). Rear
5.5" apart. Hole measurements are Panhard mount, 21" tall with 3" of Adjustment.
center-to-center.
Steel Brackets Aluminum Panhard Bar Clevis
ALL60240 ..... For 2" x 2" Tubing ALL60245 Aluminum clevis clamps around a chassis
ALL60244 ..... For 1-1/2" x 1-1/2" Tubing tube and connects to the 3/4" rod
Aluminum Brackets end on the long end of a J-bar style
ALL60243 ..... Straight, 2.5 Lbs., For 2" x 2" Tubing Panhard bar. After loosening the two
ALL60245 ..... Angled, 2.0 Lbs., For 2" x 2" Tubing Allen bolts, the clamp may be slid up or ALL60183
down on the chassis tube to adjust the bar and change
roll center.
Aluminum Radiused ALL60182 ..... 1-1/2" I.D.
Climbing Style Frame Mount ALL60183 ..... 1-3/4" I.D.
Panhard Bar Brackets Remote Adjustable
Easily adjust your Panhard bar with only Panhard Bar Mounts
one wrench! Climbing style adjuster
allows any amount of adjustment Easily adjusted on frame
without having to remove or side of Panhard bar, mount
realign any spacer/tabs. Features has a threaded shaft and
radiused slot so you don’t have to re- fastens to 1-3/4" diameter
square the rear end after adjustments. tubing. Standard mount kit
Aluminum brackets fit 2" x 2" tubing. has 2" of adjustment, drop
ALL60247 mount kit has 5" of adjust-
ALL60246 ..... Inside/Outside Mounting
(Most modifieds and GRT) ment. Each turn of the shaft
ALL60247 ..... Center/Inside Mounting (Mastersbilt, Barry moves mount .100". Extension rod may be
Wright, Hughes) mounted in rear window or decking for
ALL60248 ..... Outside /Center Mounting (Rocket) quick, easy adjustments from outside of the
car. Mounting hardware and a 3/4" Panhard
bar bolt are included.
Steel Radiused Climbing Style ALL60270 ..... Standard Mount Kit
ALL60273 ..... Drop Mount Kit
Frame Mount Panhard Bar Brackets
Replacement Items:
Steel climbing style ALL60272 .... Extension Rod With Bushing ALL60270 ALL60273
adjuster mounts to For ALL60270/ALL60273
chassis square tubing ALL60274 ..... Flange Bearing
and permits Panhard/
J-bar adjustment
without removing or
realigning spacers or
tabs found on other
mounts. Radiused ALL60237 ALL60239
slot eliminates the need to re-square the rear end after
adjustments.
ALL60238 ..... For 1-1/2" Tubing, Inside and Outside Mounting
ALL60239 ..... For 2" Tubing, Inside and Outside Mounting

Scott Bloomquist Photo: Marcus Berglund
www.allstarperformance.com 203
