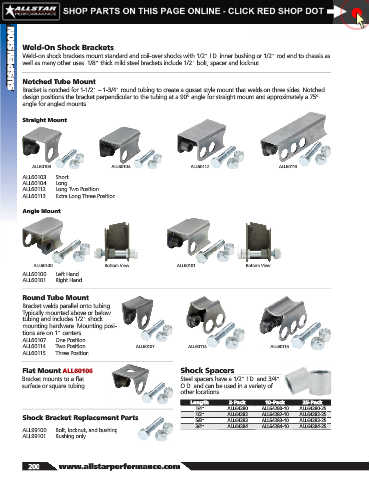

Page 202 - 2020 Allstar Performance Parts and Equipment Catalog

SUSPENSION Weld-On Shock Brackets

Weld-on shock brackets mount standard and coil-over shocks with 1/2" I.D. inner bushing or 1/2" rod end to chassis as
well as many other uses. 1/8" thick mild steel brackets include 1/2" bolt, spacer and locknut.

Notched Tube Mount
Bracket is notched for 1-1/2" – 1-3/4" round tubing to create a gusset style mount that welds on three sides. Notched
design positions the bracket perpendicular to the tubing at a 90° angle for straight mount and approximately a 75°
angle for angled mounts.

Straight Mount

ALL60103 ALL60104 ALL60112 ALL60113
ALL60103 ..... Short
ALL60104 ..... Long
ALL60112 ..... Long Two Position
ALL60113 ..... Extra Long Three Position

Angle Mount

ALL60100 Bottom View ALL60101 Bottom View
ALL60100 ..... Left Hand
ALL60101 ..... Right Hand

Round Tube Mount
Bracket welds parallel onto tubing.
Typically mounted above or below
tubing and includes 1/2" shock
mounting hardware. Mounting posi-
tions are on 1" centers.
ALL60107 ..... One Position
ALL60114 ..... Two Position ALL60107 ALL60114 ALL60115
ALL60115 ..... Three Position

Flat Mount ALL60106 Shock Spacers
Bracket mounts to a flat Steel spacers have a 1/2" I.D. and 3/4"
surface or square tubing. O.D. and can be used in a variety of
other locations.
Length 2-Pack 10-Pack 25-Pack
1/4" ALL64280 ALL64280-10 ALL64280-25
1/2" ALL64282 ALL64282-10 ALL64282-25
Shock Bracket Replacement Parts
5/8" ALL64283 ALL64283-10 ALL64283-25
3/4" ALL64284 ALL64284-10 ALL64284-25
ALL99100 ..... Bolt, locknut, and bushing
ALL99101 ..... Bushing only
