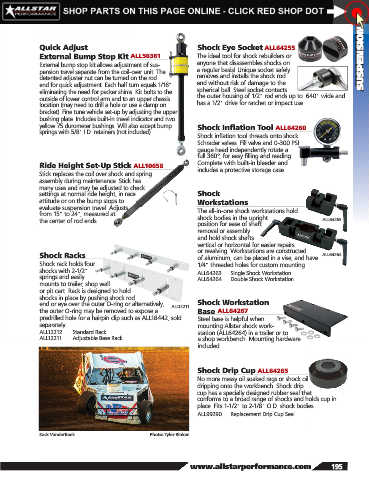

Page 197 - 2020 Allstar Performance Parts and Equipment Catalog

Quick Adjust Shock Eye Socket ALL64255
External Bump Stop Kit ALL56361 The ideal tool for shock rebuilders or SUSPENSION
External bump stop kit allows adjustment of sus- anyone that disassembles shocks on
pension travel separate from the coil-over unit. The a regular basis! Unique socket safely
detented adjuster nut can be turned on the rod removes and installs the shock rod
end for quick adjustment. Each half turn equals 1/16" end without risk of damage to the
eliminating the need for packer shims. Kit bolts to the spherical ball. Steel socket contacts
outside of lower control arm and to an upper chassis the outer housing of 1/2" rod ends up to .640" wide and
location (may need to drill a hole or use a clamp on has a 1/2" drive for ratchet or impact use.
bracket). Fine tune vehicle set-up by adjusting the upper
bushing plate. Includes built-in travel indicator and two
yellow 75 durometer bushings. Will also accept bump Shock Inflation Tool ALL64260
springs with 5/8" I.D. retainers (not included).
Shock inflation tool threads onto shock
Schrader valves. Fill valve and 0-300 PSI
gauge head independently rotate a
full 360°, for easy filling and reading.
Complete with built-in bleeder and
Ride Height Set-Up Stick ALL10658
includes a protective storage case.
Stick replaces the coil over shock and spring
assembly during maintenance. Stick has
many uses and may be adjusted to check
settings at normal ride height, in race Shock
attitude or on the bump stops to Workstations
evaluate suspension travel. Adjusts
from 15" to 24", measured at The all-in-one shock workstations hold
the center of rod ends. shock bodies in the upright ALL64263
position for ease of shaft
removal or assembly
and hold shock shafts
vertical or horizontal for easier repairs
or revalving. Workstations are constructed
Shock Racks ALL64264
of aluminum, can be placed in a vise, and have
Shock rack holds four 1/4" threaded holes for custom mounting.
shocks with 2-1/2" ALL64263 ..... Single Shock Workstation
springs and easily ALL64264 ..... Double Shock Workstation
mounts to trailer, shop wall
or pit cart. Rack is designed to hold
shocks in place by pushing shock rod
end or eye over the outer O-ring or alternatively, ALL12211 Shock Workstation
the outer O-ring may be removed to expose a Base ALL64267
predrilled hole for a hairpin clip such as ALL18442, sold Steel base is helpful when
separately. mounting Allstar shock work-
ALL12212 ...... Standard Rack station (ALL64264) in a trailer or to
ALL12211 ...... Adjustable Base Rack a shop workbench. Mounting hardware
included.

Shock Drip Cup ALL64265
No more messy oil soaked rags or shock oil
dripping onto the workbench. Shock drip
cup has a specially designed rubber seal that
conforms to a broad range of shocks and holds cup in
place. Fits 1-1/2" to 2-1/8" O.D. shock bodies.
ALL99290 ..... Replacement Drip Cup Seal

Zack VanderBeek Photo: Tyler Rinken
