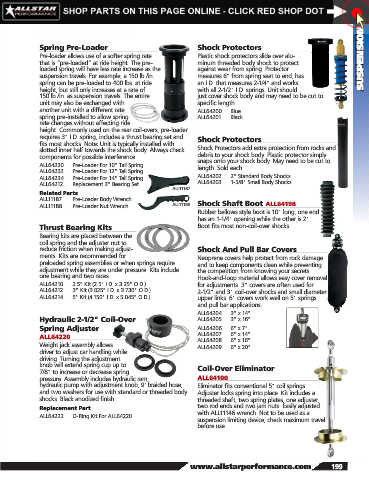

Page 201 - 2020 Allstar Performance Parts and Equipment Catalog

Spring Pre-Loader Shock Protectors
Pre-loader allows use of a softer spring rate Plastic shock protectors slide over alu- SUSPENSION
that is “pre-loaded” at ride height. The pre- minum threaded body shock to protect
loaded spring will have less rate increase as the against wear from spring. Protector
suspension travels. For example, a 150 lb./in. measures 6" from spring seat to end, has
spring can be pre-loaded to 400 lbs. at ride an I.D. that measures 2-1/4" and works
height, but still only increases at a rate of with all 2-1/2" I.D. springs. Unit should
150 lb./in. as suspension travels. The entire just cover shock body and may need to be cut to
unit may also be exchanged with specific length.
another unit with a different rate ALL64200 ..... Blue
spring pre-installed to allow spring ALL64201 ..... Black
rate changes without affecting ride
height. Commonly used on the rear coil-overs, pre-loader
requires 3" I.D. spring, includes a thrust bearing set and Shock Protectors
fits most shocks. Note: Unit is typically installed with
slotted inner half towards the shock body. Always check Shock Protectors add extra protection from rocks and
components for possible interference. debris to your shock body. Plastic protector simply
snaps onto your shock body. May need to be cut to
ALL64230 ..... Pre-Loader For 10" Tall Spring length. Sold each.
ALL64232 ..... Pre-Loader For 12" Tall Spring
ALL64234 ..... Pre-Loader For 14" Tall Spring ALL64202 ..... 2" Standard Body Shocks
ALL64212 ..... Replacement 3" Bearing Set ALL64203 ..... 1-5/8" Small Body Shocks
ALL11187
Related Parts
ALL11187 ...... Pre-Loader Body Wrench
ALL11188 ...... Pre-Loader Nut Wrench ALL11188 Shock Shaft Boot ALL64198
Rubber bellows style boot is 10" long, one end
has an 1-1/4" opening while the other is 2".
Thrust Bearing Kits Boot fits most non-coil-over shocks.
Bearing kits are placed between the
coil spring and the adjuster nut to
reduce friction when making adjust- Shock And Pull Bar Covers
ments. Kits are recommended for Neoprene covers help protect from rock damage
preloaded spring assemblies or when springs require and to keep components clean while preventing
adjustment while they are under pressure. Kits include the competition from knowing your secrets.
one bearing and two races. Hook-and-loop material allows easy cover removal
ALL64210 ..... 2.5" Kit (2.5" I.D. x 3.25" O.D.) for adjustments. 3" covers are often used for
ALL64212 ..... 3" Kit (3.025" I.D. x 3.730" O.D.) 2-1/2" and 3" coil-over shocks and small diameter
ALL64214 ..... 5" Kit (4.150" I.D. x 5.045" O.D.) upper links. 6" covers work well on 5" springs
and pull bar applications.
ALL64204 ..... 3" x 14"
Hydraulic 2-1/2" Coil-Over ALL64205 ..... 3" x 16"
Spring Adjuster ALL64206 ..... 6" x 7"
ALL64207 ..... 6" x 14"
ALL64220
ALL64208 ..... 6" x 16"
Weight jack assembly allows ALL64209 ..... 6" x 20"
driver to adjust car handling while
driving. Turning the adjustment
knob will extend spring cup up to Coil-Over Eliminator
7/8" to increase or decrease spring
pressure. Assembly includes hydraulic ram, ALL64100
hydraulic pump with adjustment knob, 9' braided hose, Eliminator fits conventional 5" coil springs.
and two washers for use with standard or threaded body Adjuster locks spring into place. Kit includes a
shocks. Black anodized finish. threaded shaft, two spring plates, one adjuster,
Replacement Part two rod ends and two jam nuts. Easily adjusted
with ALL11146 wrench. Not to be used as a
ALL64222 ..... O-Ring Kit For ALL64220
suspension limiting device, check maximum travel
before use.

www.allstarperformance.com 199
