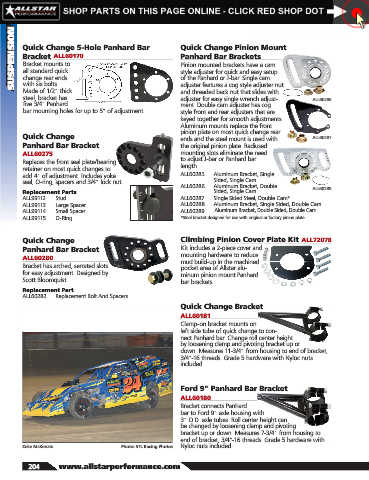

Page 206 - 2020 Allstar Performance Parts and Equipment Catalog

SUSPENSION Quick Change 5-Hole Panhard Bar Quick Change Pinion Mount

Panhard Bar Brackets
Bracket ALL60170
Pinion mounted brackets have a cam
Bracket mounts to
all standard quick
style adjuster for quick and easy setup
change rear ends
adjuster features a cog style adjuster nut
with six bolts.
Made of 1/2" thick of the Panhard or J-bar. Single cam
and threaded back nut that slides with
steel, bracket has adjuster for easy single wrench adjust- ALL60285
five 3/4" Panhard ment. Double cam adjuster has cog
bar mounting holes for up to 5" of adjustment. style front and rear adjusters that are
keyed together for smooth adjustments.
Aluminum mounts replace the front
pinion plate on most quick change rear
Quick Change ends and the steel mount is used with ALL60287
Panhard Bar Bracket the original pinion plate. Radiused
ALL60275 mounting slots eliminate the need
to adjust J-bar or Panhard bar
Replaces the front seal plate/bearing
retainer on most quick changes to length.
add 4" of adjustment. Includes yoke ALL60285 ..... Aluminum Bracket, Single
seal, O-ring, spacers and 3/4" lock nut. Sided, Single Cam
ALL60286 ..... Aluminum Bracket, Double ALL60289
Replacement Parts Sided, Single Cam
ALL99112 ..... Stud ALL60287 ..... Single Sided Steel, Double Cam*
ALL99113 ..... Large Spacer ALL60288 ..... Aluminum Bracket, Single Sided, Double Cam
ALL99114 ..... Small Spacer ALL60289 ..... Aluminum Bracket, Double Sided, Double Cam
ALL99115 ..... O-Ring *Steel bracket designed for use with original or factory pinion plate

Quick Change Climbing Pinion Cover Plate Kit ALL72078
Panhard Bar Bracket Kit includes a 2-piece cover and
mounting hardware to reduce
ALL60280
mud build-up in the machined
Bracket has arched, serrated slots pocket area of Allstar alu-
for easy adjustment. Designed by minum pinion mount Panhard
Scott Bloomquist.
bar brackets.
Replacement Part
ALL60282 ..... Replacement Bolt And Spacers
Quick Change Bracket
ALL60181
Clamp-on bracket mounts on
left side tube of quick change to con-
nect Panhard bar. Change roll center height
by loosening clamp and pivoting bracket up or
down. Measures 11-3/4" from housing to end of bracket,
3/4"-16 threads. Grade 5 hardware with Nyloc nuts
included.

Ford 9" Panhard Bar Bracket
ALL60180
Bracket connects Panhard
bar to Ford 9" axle housing with
3" O.D. axle tubes. Roll center height can
be changed by loosening clamp and pivoting
bracket up or down. Measures 7-3/4" from housing to
end of bracket, 3/4"-16 threads. Grade 5 hardware with
Zeke McKenzie Photo: STL Racing Photos Nyloc nuts included.

204 www.allstarperformance.com
