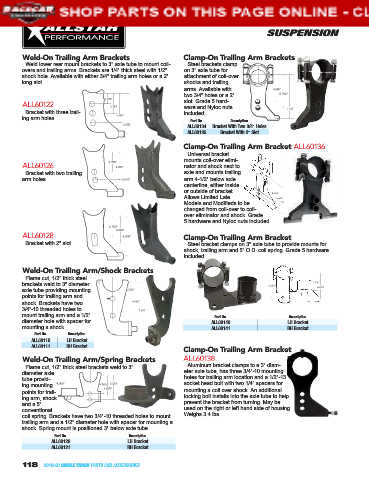

SUSPENSION

Weld-On Trailing Arm Brackets Clamp-On Trailing Arm Brackets
Weld lower rear mount brackets to 3" axle tube to mount coil- Steel brackets clamp
overs and trailing arms. Brackets are 1/4" thick steel with 1/2" on 3" axle tube for
shock hole. Available with either 3/4" trailing arm holes or a 2" attachment of coil-over
long slot. shocks and trailing
arms. Available with
two 3/4" holes or a 2"
ALL60122 slot. Grade 5 hard-
ware and Nyloc nuts
Bracket with three trail- included.
ing arm holes.
Part No. Description
ALL60134 Bracket With Two 3/4" Holes
ALL60135 Bracket With 2" Slot
Clamp-On Trailing Arm Bracket ALL60136
Universal bracket
mounts coil-over elimi-
ALL60126 nator and shock next to
Bracket with two trailing axle and mounts trailing
arm holes. arm 4-1/2" below axle
centerline, either inside
or outside of bracket.
Allows Limited Late
0RGHOV DQG 0RGL¿HGV WR EH
changed from coil-over to coil-
over eliminator and shock. Grade
5 hardware and Nyloc nuts included.
ALL60128 Clamp-On Trailing Arm Bracket
Bracket with 2" slot. Steel bracket clamps on 3" axle tube to provide mounts for
shock, trailing arm and 5" O.D. coil spring. Grade 5 hardware
included.
Weld-On Trailing Arm/Shock Brackets
Flame cut, 1/2" thick steel
brackets weld to 3" diameter
axle tube providing mounting
points for trailing arm and
shock. Brackets have two
3/4"-10 threaded holes to
mount trailing arm and a 1/2"
Part No. Description
diameter hole with spacer for ALL60140 LH Bracket
mounting a shock. ALL60141 RH Bracket
Part No. Description
ALL60110 LH Bracket
ALL60111 RH Bracket
Clamp-On Trailing Arm Bracket
Weld-On Trailing Arm/Spring Brackets ALL60138
Flame cut, 1/2" thick steel brackets weld to 3" Aluminum bracket clamps to a 3" diam-
diameter axle eter axle tube, has three 3/4"-10 mounting
tube provid- holes for trailing arm location and a 1/2"-13
ing mounting socket head bolt with two 1/4" spacers for
points for trail- mounting a coil over shock. An additional
ing arm, shock locking bolt installs into the axle tube to help
and a 5" prevent the bracket from turning. May be
conventional used on the right or left hand side of housing
coil spring. Brackets have two 3/4"-10 threaded holes to mount Weighs 3.4 lbs.
trailing arm and a 1/2" diameter hole with spacer for mounting a
shock. Spring mount is positioned 3" below axle tube.
Part No. Description
ALL60120 LH Bracket
ALL60121 RH Bracket
