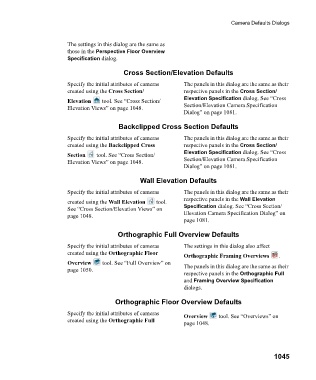

Page 1045 - Chief Architect Reference Manual

Camera Defaults Dialogs

The settings in this dialog are the same as
those in the Perspective Floor Overview
Specification dialog.

Cross Section/Elevation Defaults
Specify the initial attributes of cameras The panels in this dialog are the same as their
created using the Cross Section/ respective panels in the Cross Section/
Elevation Specification dialog. See “Cross
Elevation tool. See “Cross Section/
Elevation Views” on page 1048. Section/Elevation Camera Specification
Dialog” on page 1081.

Backclipped Cross Section Defaults

Specify the initial attributes of cameras The panels in this dialog are the same as their
created using the Backclipped Cross respective panels in the Cross Section/
Elevation Specification dialog. See “Cross
Section tool. See “Cross Section/
Elevation Views” on page 1048. Section/Elevation Camera Specification
Dialog” on page 1081.

Wall Elevation Defaults
Specify the initial attributes of cameras The panels in this dialog are the same as their
created using the Wall Elevation tool. respective panels in the Wall Elevation
See “Cross Section/Elevation Views” on Specification dialog. See “Cross Section/
page 1048. Elevation Camera Specification Dialog” on
page 1081.

Orthographic Full Overview Defaults

Specify the initial attributes of cameras The settings in this dialog also affect
created using the Orthographic Floor Orthographic Framing Overviews .
Overview tool. See “Full Overview” on The panels in this dialog are the same as their
page 1050.
respective panels in the Orthographic Full
and Framing Overview Specification
dialogs.
Orthographic Floor Overview Defaults

Specify the initial attributes of cameras Overview tool. See “Overviews” on
created using the Orthographic Full page 1048.

1045
