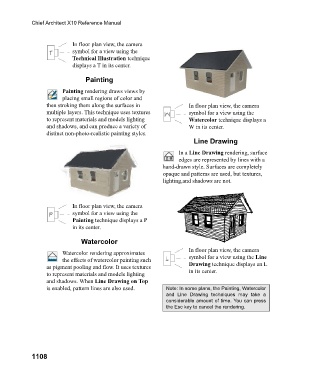

Chief Architect X10 Reference Manual

In floor plan view, the camera
symbol for a view using the
Technical Illustration technique
displays a T in its center.

Painting

Painting rendering draws views by
placing small regions of color and
then stroking them along the surfaces in In floor plan view, the camera
multiple layers. This technique uses textures symbol for a view using the
to represent materials and models lighting Watercolor technique displays a
and shadows, and can produce a variety of W in its center.
distinct non-photo-realistic painting styles.
Line Drawing

In a Line Drawing rendering, surface
edges are represented by lines with a
hand-drawn style. Surfaces are completely
opaque and patterns are used, but textures,
lighting,and shadows are not.

In floor plan view, the camera
symbol for a view using the
Painting technique displays a P
in its center.

Watercolor
In floor plan view, the camera
Watercolor rendering approximates
the effects of watercolor painting such symbol for a view using the Line
as pigment pooling and flow. It uses textures Drawing technique displays an L
to represent materials and models lighting in its center.
and shadows. When Line Drawing on Top
is enabled, pattern lines are also used. Note: In some plans, the Painting, Watercolor
and Line Drawing techniques may take a
considerable amount of time. You can press
the Esc key to cancel the rendering.
