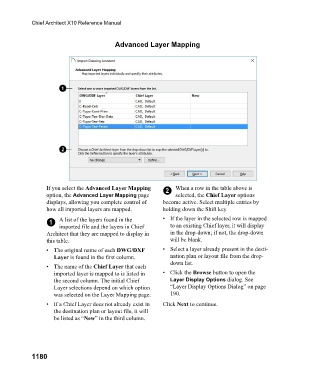

Advanced Layer Mapping

If you select the Advanced Layer Mapping 2 When a row in the table above is
option, the Advanced Layer Mapping page selected, the Chief Layer options
displays, allowing you complete control of become active. Select multiple entries by
how all imported layers are mapped. holding down the Shift key

1 A list of the layers found in the • If the layer in the selected row is mapped
imported file and the layers in Chief to an existing Chief layer, it will display
Architect that they are mapped to display in in the drop-down; if not, the drop-down
this table. will be blank.
• The original name of each DWG/DXF • Select a layer already present in the desti-
Layer is found in the first column. nation plan or layout file from the drop-
down list.
• The name of the Chief Layer that each
imported layer is mapped to is listed in • Click the Browse button to open the
the second column. The initial Chief Layer Display Options dialog. See
Layer selections depend on which option “Layer Display Options Dialog” on page
was selected on the Layer Mapping page. 190.
• If a Chief Layer does not already exist in Click Next to continue.
