Chief Architect X10 Reference Manual

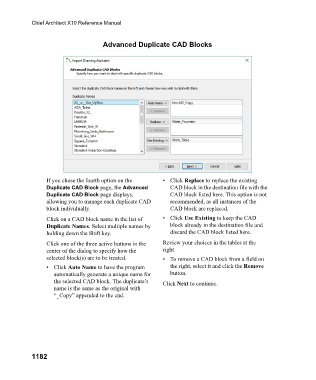

Advanced Duplicate CAD Blocks

If you chose the fourth option on the • Click Replace to replace the existing
Duplicate CAD Block page, the Advanced CAD block in the destination file with the
Duplicate CAD Block page displays, CAD block listed here. This option is not
allowing you to manage each duplicate CAD recommended, as all instances of the
block individually. CAD block are replaced.
Click on a CAD block name in the list of • Click Use Existing to keep the CAD
Duplicate Names. Select multiple names by block already in the destination file and
holding down the Shift key. discard the CAD block listed here.
Click one of the three active buttons in the Review your choices in the tables at the
center of the dialog to specify how the right.
selected block(s) are to be treated. • To remove a CAD block from a field on
• Click Auto Name to have the program the right, select it and click the Remove
automatically generate a unique name for button.
the selected CAD block. The duplicate’s Click Next to continue.
name is the same as the original with
“_Copy” appended to the end.

1182
