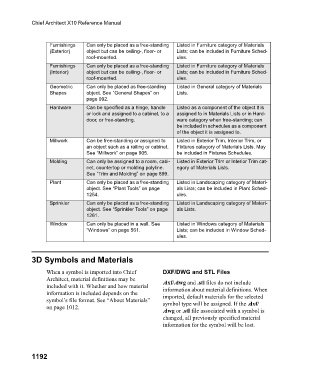

Chief Architect X10 Reference Manual

Furnishings Can only be placed as a free-standing Listed in Furniture category of Materials
(Exterior) object but can be ceiling-, floor- or Lists; can be included in Furniture Sched-
roof-mounted. ules.
Furnishings Can only be placed as a free-standing Listed in Furniture category of Materials
(Interior) object but can be ceiling-, floor- or Lists; can be included in Furniture Sched-
roof-mounted. ules.
Geometric Can only be placed as free-standing Listed in General category of Materials
Shapes object. See “General Shapes” on Lists.
page 992.
Hardware Can be specified as a hinge, handle Listed as a component of the object it is
or lock and assigned to a cabinet, to a assigned to in Materials Lists or in Hard-
door, or free-standing. ware category when free-standing; can
be included in schedules as a component
of the object it is assigned to.
Millwork Can be free-standing or assigned to Listed in Exterior Trim, Interior Trim, or
an object such as a railing or cabinet. Fixtures category of Materials Lists. May
See “Millwork” on page 905. be included in Fixtures Schedules.
Molding Can only be assigned to a room, cabi- Listed in Exterior Trim or Interior Trim cat-
net, countertop or molding polyline. egory of Materials Lists.
See “Trim and Molding” on page 899.
Plant Can only be placed as a free-standing Listed in Landscaping category of Materi-
object. See “Plant Tools” on page als Lists; can be included in Plant Sched-
1254. ules.
Sprinkler Can only be placed as a free-standing Listed in Landscaping category of Materi-
object. See “Sprinkler Tools” on page als Lists.
1261.
Window Can only be placed in a wall. See Listed in Windows category of Materials
“Windows” on page 561. Lists; can be included in Window Sched-
ules.

3D Symbols and Materials

When a symbol is imported into Chief DXF/DWG and STL Files
Architect, material definitions may be .dxf/.dwg and .stl files do not include
included with it. Whether and how material information about material definitions. When
information is included depends on the imported, default materials for the selected
symbol’s file format. See “About Materials” symbol type will be assigned. If the .dxf/
on page 1012.
.dwg or .stl file associated with a symbol is
changed, all previously specified material
information for the symbol will be lost.

1192
