Chief Architect X10 Reference Manual

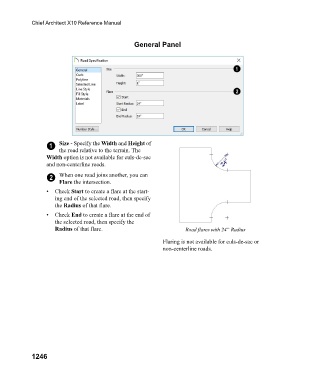

General Panel

1 Size - Specify the Width and Height of
the road relative to the terrain. The
Width option is not available for culs-de-sac
and non-centerline roads.

2 When one road joins another, you can
Flare the intersection.
• Check Start to create a flare at the start-
ing end of the selected road, then specify
the Radius of that flare.
• Check End to create a flare at the end of
the selected road, then specify the
Radius of that flare. Road flares with 24” Radius

Flaring is not available for culs-de-sac or
non-centerline roads.
