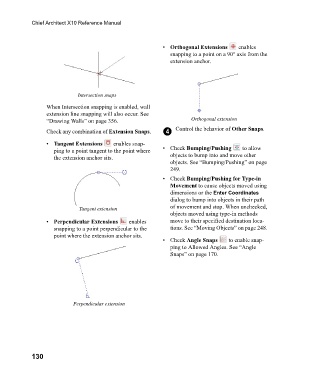

Chief Architect X10 Reference Manual

• Orthogonal Extensions enables
snapping to a point on a 90° axis from the
extension anchor.

Intersection snaps
When Intersection snapping is enabled, wall
extension line snapping will also occur. See
“Drawing Walls” on page 356. Orthogonal extension
Check any combination of Extension Snaps. 4 Control the behavior of Other Snaps.

• Tangent Extensions enables snap-
ping to a point tangent to the point where • Check Bumping/Pushing to allow
the extension anchor sits. objects to bump into and move other
objects. See “Bumping/Pushing” on page
249.
• Check Bumping/Pushing for Type-in
Movement to cause objects moved using
dimensions or the Enter Coordinates
dialog to bump into objects in their path
Tangent extension of movement and stop. When unchecked,
objects moved using type-in methods
• Perpendicular Extensions enables move to their specified destination loca-
snapping to a point perpendicular to the tions. See “Moving Objects” on page 248.
point where the extension anchor sits.
• Check Angle Snaps to enable snap-
ping to Allowed Angles. See “Angle
Snaps” on page 170.

Perpendicular extension

130
