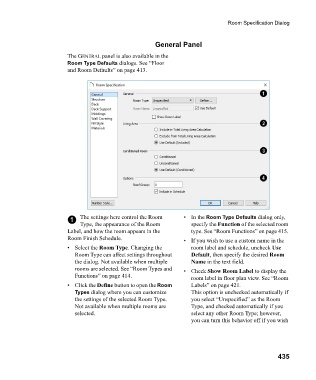

Room Specification Dialog

General Panel
The GENERAL panel is also available in the
Room Type Defaults dialogs. See “Floor
and Room Defaults” on page 413.

1 The settings here control the Room •In the Room Type Defaults dialog only,
Type, the appearance of the Room specify the Function of the selected room
Label, and how the room appears in the type. See “Room Functions” on page 415.
Room Finish Schedule. • If you wish to use a custom name in the
• Select the Room Type. Changing the room label and schedule, uncheck Use
Room Type can affect settings throughout Default, then specify the desired Room
the dialog. Not available when multiple Name in the text field.
rooms are selected. See “Room Types and •Check Show Room Label to display the
Functions” on page 414. room label in floor plan view. See “Room
• Click the Define button to open the Room Labels” on page 421.
Types dialog where you can customize This option is unchecked automatically if
the settings of the selected Room Type. you select “Unspecified” as the Room
Not available when multiple rooms are Type, and checked automatically if you
selected. select any other Room Type; however,
you can turn this behavior off if you wish

435
