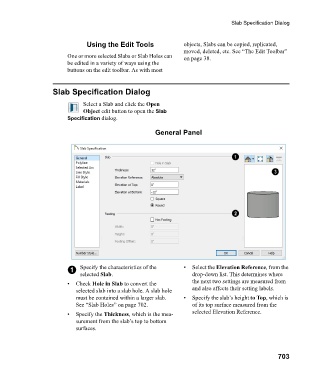

Slab Specification Dialog

Using the Edit Tools objects, Slabs can be copied, replicated,
moved, deleted, etc. See “The Edit Toolbar”
One or more selected Slabs or Slab Holes can on page 38.
be edited in a variety of ways using the
buttons on the edit toolbar. As with most

Slab Specification Dialog
Select a Slab and click the Open
Object edit button to open the Slab
Specification dialog.
General Panel

1 Specify the characteristics of the • Select the Elevation Reference, from the
selected Slab. drop-down list. This determines where
• Check Hole in Slab to convert the the next two settings are measured from
selected slab into a slab hole. A slab hole and also affects their setting labels.
must be contained within a larger slab. • Specify the slab’s height to Top, which is
See “Slab Holes” on page 702. of its top surface measured from the
• Specify the Thickness, which is the mea- selected Elevation Reference.
surement from the slab’s top to bottom
surfaces.

703
