Roof Plane Specification Dialog

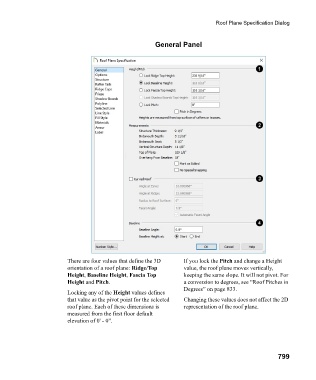

General Panel

There are four values that define the 3D If you lock the Pitch and change a Height
orientation of a roof plane: Ridge/Top value, the roof plane moves vertically,
Height, Baseline Height, Fascia Top keeping the same slope. It will not pivot. For
Height and Pitch. a conversion to degrees, see “Roof Pitches in
Degrees” on page 833.
Locking any of the Height values defines
that value as the pivot point for the selected Changing these values does not affect the 2D
roof plane. Each of these dimensions is representation of the roof plane.
measured from the first floor default
elevation of 0' - 0".
