Chief Architect X10 Reference Manual

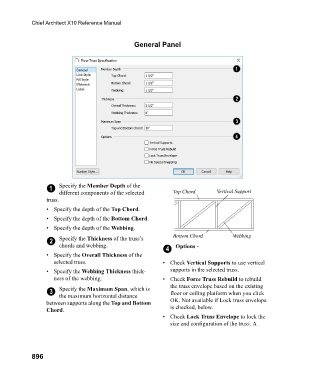

General Panel

1 Specify the Member Depth of the
different components of the selected Top Chord Vertical Support
truss.
• Specify the depth of the Top Chord.
• Specify the depth of the Bottom Chord.
• Specify the depth of the Webbing.

2 Specify the Thickness of the truss’s Bottom Chord Webbing
chords and webbing. Options -
4
• Specify the Overall Thickness of the
selected truss. • Check Vertical Supports to use vertical
• Specify the Webbing Thickness thick- supports in the selected truss.
ness of the webbing. • Check Force Truss Rebuild to rebuild
the truss envelope based on the existing
3 Specify the Maximum Span, which is floor or ceiling platform when you click
the maximum horizontal distance
between supports along the Top and Bottom OK. Not available if Lock truss envelope
Chord. is checked, below.
• Check Lock Truss Envelope to lock the
size and configuration of the truss. A

896
