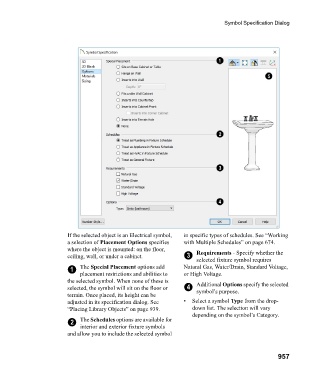

Symbol Specification Dialog

If the selected object is an Electrical symbol, in specific types of schedules. See “Working
a selection of Placement Options specifies with Multiple Schedules” on page 674.
where the object is mounted: on the floor, Requirements - Specify whether the
ceiling, wall, or under a cabinet. 3
selected fixture symbol requires
1 The Special Placement options add Natural Gas, Water/Drain, Standard Voltage,
placement restrictions and abilities to or High Voltage.
the selected symbol. When none of these is Additional Options specify the selected
selected, the symbol will sit on the floor or 4 symbol’s purpose.
terrain. Once placed, its height can be
adjusted in its specification dialog. See • Select a symbol Type from the drop-
“Placing Library Objects” on page 939. down list. The selection will vary
depending on the symbol’s Category.
2 The Schedules options are available for
interior and exterior fixture symbols
and allow you to include the selected symbol

957
