Symbol Specification Dialog

If changes are made to an existing sym-
bol in a plan or the Library Browser, you
may also want to generate a new 2D Block to
represent it in floor plan view.

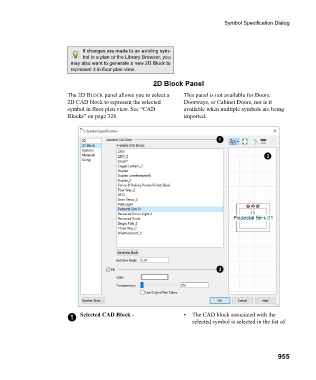

2D Block Panel
The 2D BLOCK panel allows you to select a This panel is not available for Doors,
2D CAD block to represent the selected Doorways, or Cabinet Doors, nor is it
symbol in floor plan view. See “CAD available when multiple symbols are being
Blocks” on page 326. imported.

1 Selected CAD Block - • The CAD block associated with the
selected symbol is selected in the list of
