Chief Architect X10 Reference Manual

symbol as it is imported determines the • Check Show Advanced Options in the
initial attributes that it will have once Convert to Symbol dialog. See “Convert
brought into a plan or saved in the library. to Symbol” on page 962.
See “Importing 3D Symbols” on page
1191.

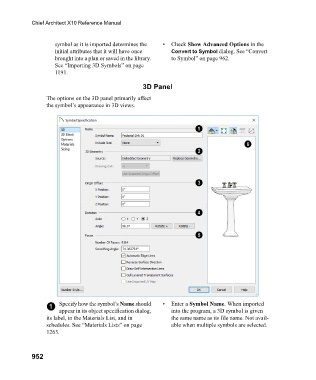

3D Panel
The options on the 3D panel primarily affect
the symbol’s appearance in 3D views.

1 Specify how the symbol’s Name should • Enter a Symbol Name. When imported
appear in its object specification dialog, into the program, a 3D symbol is given
its label, in the Materials List, and in the same name as its file name. Not avail-
schedules. See “Materials Lists” on page able when multiple symbols are selected.
1263.
