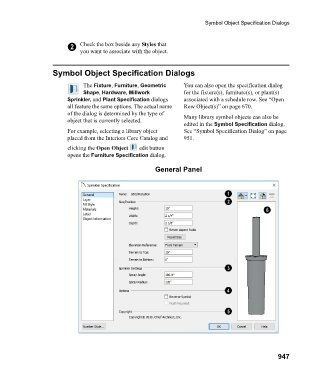

Page 947 - Chief Architect Reference Manual

Symbol Object Specification Dialogs

2 Check the box beside any Styles that
you want to associate with the object.

Symbol Object Specification Dialogs

The Fixture, Furniture, Geometric You can also open the specification dialog
Shape, Hardware, Millwork for the fixture(s), furniture(s), or plant(s)
Sprinkler, and Plant Specification dialogs associated with a schedule row. See “Open
all feature the same options. The actual name Row Object(s)” on page 670.
of the dialog is determined by the type of Many library symbol objects can also be
object that is currently selected.
edited in the Symbol Specification dialog.
For example, selecting a library object See “Symbol Specification Dialog” on page
placed from the Interiors Core Catalog and 951.
clicking the Open Object edit button
opens the Furniture Specification dialog.

General Panel
