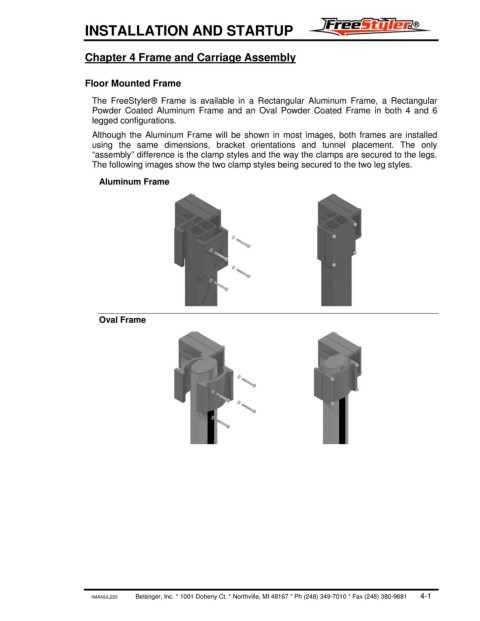

                       INSTALLATION AND STARTUP


                       Chapter 4 Frame and Carriage Assembly


                       Floor Mounted Frame

                        The FreeStyler® Frame is  available  in  a  Rectangular Aluminum Frame, a Rectangular
                        Powder Coated Aluminum Frame and an Oval Powder Coated Frame in  both  4  and  6
                        legged configurations.

                        Although the Aluminum Frame will be shown in most images, both frames are installed
                        using  the  same  dimensions, bracket orientations and tunnel placement. The only
                        “assembly” difference is the clamp styles and the way the clamps are secured to the legs.
                        The following images show the two clamp styles being secured to the two leg styles.

                          Aluminum Frame



















                          Oval Frame
