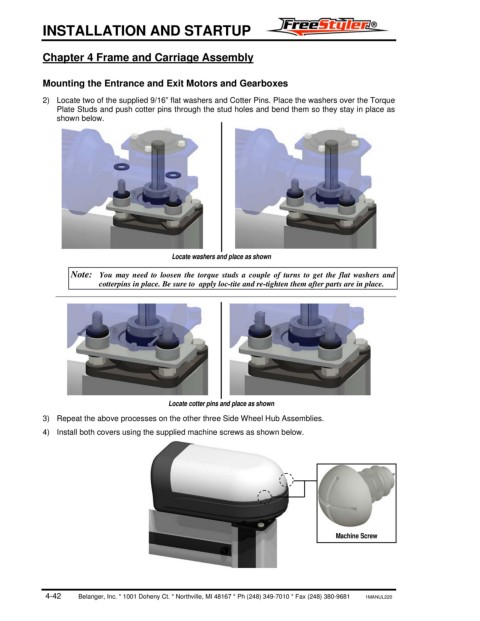

Page 84 - FreesStyler® Installation and Startup

®
INSTALLATION AND STARTUP

Chapter 4 Frame and Carriage Assembly

Mounting the Entrance and Exit Motors and Gearboxes

2) Locate two of the supplied 9/16” flat washers and Cotter Pins. Place the washers over the Torque
Plate Studs and push cotter pins through the stud holes and bend them so they stay in place as
shown below.

Locate washers and place as shown

Note: You may need to loosen the torque studs a couple of turns to get the flat washers and
cotterpins in place. Be sure to apply loc-tite and re-tighten them after parts are in place.

Locate cotter pins and place as shown
3) Repeat the above processes on the other three Side Wheel Hub Assemblies.
4) Install both covers using the supplied machine screws as shown below.

Machine Screw
