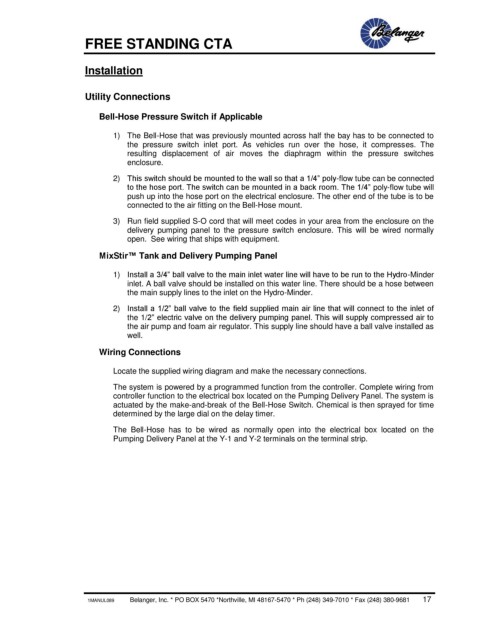

FREE STANDING CTA

                       Installation


                       Utility Connections


                          Bell-Hose Pressure Switch if Applicable

                              1)  The Bell-Hose that was previously mounted across half the bay has to be connected to
                                 the  pressure  switch  inlet  port.  As  vehicles  run  over  the  hose,  it  compresses.  The
                                 resulting  displacement  of  air  moves  the  diaphragm  within  the  pressure  switches
                                 enclosure.

                              2)  This switch should be mounted to the wall so that a 1/4” poly-flow tube can be connected
                                 to the hose port. The switch can be mounted in a back room. The 1/4” poly-flow tube will
                                 push up into the hose port on the electrical enclosure. The other end of the tube is to be
                                 connected to the air fitting on the Bell-Hose mount.
                              3)  Run field supplied S-O cord that will meet codes in your area from the enclosure on the
                                 delivery  pumping  panel  to  the  pressure  switch  enclosure.  This  will  be  wired  normally
                                 open.  See wiring that ships with equipment.

                          MixStir™ Tank and Delivery Pumping Panel

                              1)  Install a 3/4” ball valve to the main inlet water line will have to be run to the Hydro-Minder
                                 inlet. A ball valve should be installed on this water line. There should be a hose between
                                 the main supply lines to the inlet on the Hydro-Minder.
                              2)  Install a 1/2” ball valve to the field supplied main air line that will connect to the inlet of
                                 the 1/2” electric valve on the delivery pumping panel. This will supply compressed air to
                                 the air pump and foam air regulator. This supply line should have a ball valve installed as
                                 well.
                          Wiring Connections

                              Locate the supplied wiring diagram and make the necessary connections.

                              The system is powered by a programmed function from the controller. Complete wiring from
                              controller function to the electrical box located on the Pumping Delivery Panel. The system is
                              actuated by the make-and-break of the Bell-Hose Switch. Chemical is then sprayed for time
                              determined by the large dial on the delay timer.

                              The  Bell-Hose  has  to  be  wired  as  normally  open  into  the  electrical  box  located  on  the
                              Pumping Delivery Panel at the Y-1 and Y-2 terminals on the terminal strip.





















                       1MANUL089          Belanger, Inc. * PO BOX 5470 *Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681      17
