CHAMELEON® ARCH SERIES

Installation

Arch Assembly

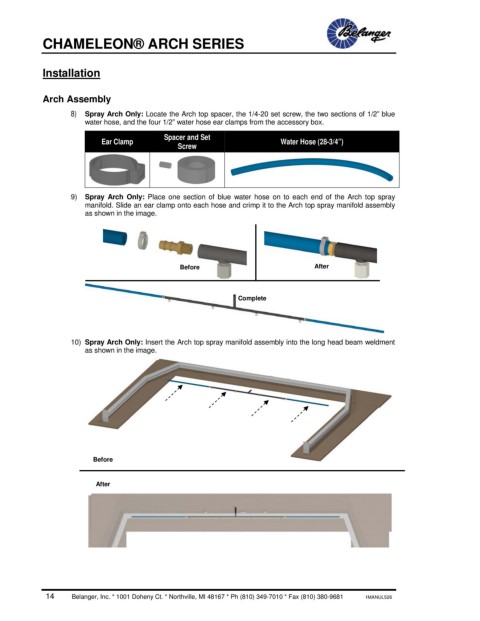

8) Spray Arch Only: Locate the Arch top spacer, the 1/4-20 set screw, the two sections of 1/2” blue
water hose, and the four 1/2” water hose ear clamps from the accessory box.
Spacer and Set
Ear Clamp Water Hose (28-3/4”)
Screw

9) Spray Arch Only: Place one section of blue water hose on to each end of the Arch top spray
manifold. Slide an ear clamp onto each hose and crimp it to the Arch top spray manifold assembly
as shown in the image.

Before After

Complete

10) Spray Arch Only: Insert the Arch top spray manifold assembly into the long head beam weldment
as shown in the image.

Before

After
