INSTALLATION & STARTUP
Chapter 16 Dryers
Side Kick® Wall Mounted
Side Nozzle Mount Brackets

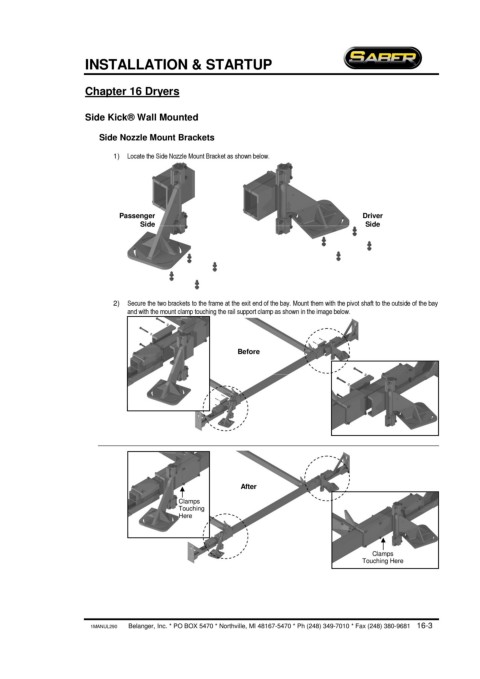

1) Locate the Side Nozzle Mount Bracket as shown below.
Passenger Driver
Side Side
2) Secure the two brackets to the frame at the exit end of the bay. Mount them with the pivot shaft to the outside of the bay
and with the mount clamp touching the rail support clamp as shown in the image below.
Before
After
Clamps
Touching
Here
Clamps
Touching Here
