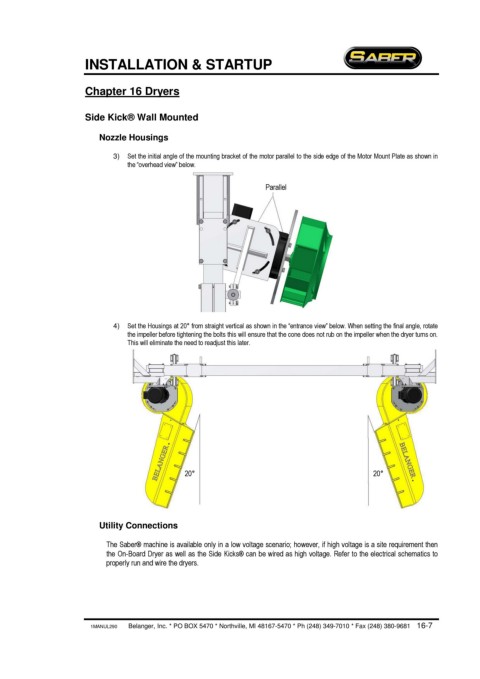

INSTALLATION & STARTUP
Chapter 16 Dryers
Side Kick® Wall Mounted
Nozzle Housings
3) Set the initial angle of the mounting bracket of the motor parallel to the side edge of the Motor Mount Plate as shown in
the “overhead view” below.
Parallel
4) Set the Housings at 20° from straight vertical as shown in the “entrance view” below. When setting the final angle, rotate
the impeller before tightening the bolts this will ensure that the cone does not rub on the impeller when the dryer turns on.
This will eliminate the need to readjust this later.
20° 20°
Utility Connections
The Saber® machine is available only in a low voltage scenario; however, if high voltage is a site requirement then
the On-Board Dryer as well as the Side Kicks® can be wired as high voltage. Refer to the electrical schematics to
properly run and wire the dryers.
