Side Kick® Wall Mounted
Motor / Impellars

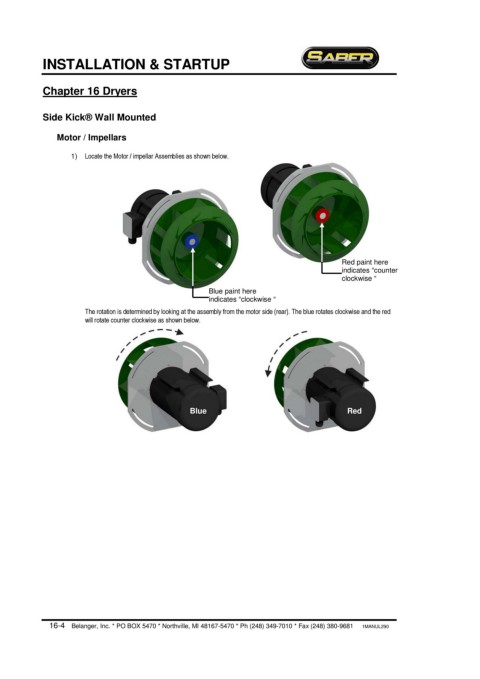

1) Locate the Motor / impellar Assemblies as shown below.
Red paint here
indicates “counter
clockwise “
Blue paint here
indicates “clockwise “
The rotation is determined by looking at the assembly from the motor side (rear). The blue rotates clockwise and the red
will rotate counter clockwise as shown below.
Blue Red
