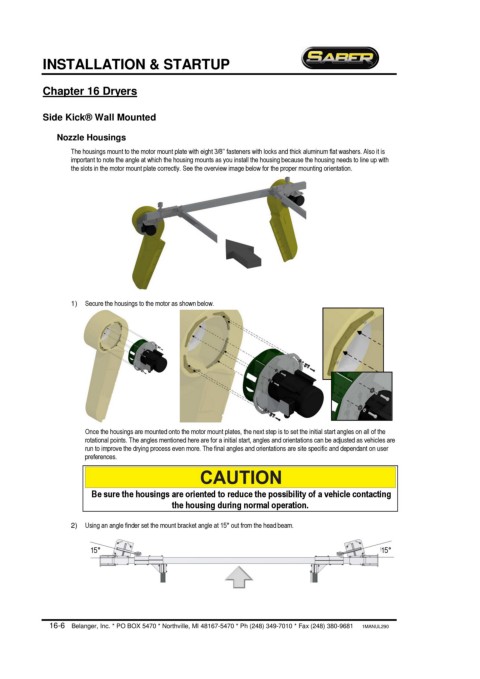

INSTALLATION & STARTUP
Chapter 16 Dryers
Side Kick® Wall Mounted
Nozzle Housings
The housings mount to the motor mount plate with eight 3/8’’ fasteners with locks and thick aluminum flat washers. Also it is
important to note the angle at which the housing mounts as you install the housing because the housing needs to line up with
the slots in the motor mount plate correctly. See the overview image below for the proper mounting orientation.
1) Secure the housings to the motor as shown below.
Once the housings are mounted onto the motor mount plates, the next step is to set the initial start angles on all of the
rotational points. The angles mentioned here are for a initial start, angles and orientations can be adjusted as vehicles are
run to improve the drying process even more. The final angles and orientations are site specific and dependant on user
preferences.
Be sure the housings are oriented to reduce the possibility of a vehicle contacting
the housing during normal operation.
2) Using an angle finder set the mount bracket angle at 15° out from the head beam.
15° 15°
