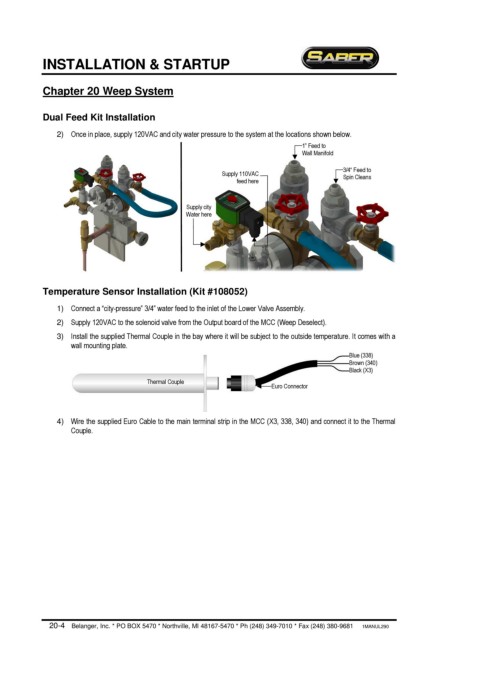

INSTALLATION & STARTUP
Chapter 20 Weep System
Dual Feed Kit Installation
2) Once in place, supply 120VAC and city water pressure to the system at the locations shown below.
1” Feed to
Wall Manifold
3/4“ Feed to
Supply 110VAC Spin Cleans
feed here
Supply city
Water here
Temperature Sensor Installation (Kit #108052)
1) Connect a “city-pressure” 3/4” water feed to the inlet of the Lower Valve Assembly.
2) Supply 120VAC to the solenoid valve from the Output board of the MCC (Weep Deselect).
3) Install the supplied Thermal Couple in the bay where it will be subject to the outside temperature. It comes with a
wall mounting plate.
Blue (338)
Brown (340)
Black (X3)
Thermal Couple
Euro Connector
4) Wire the supplied Euro Cable to the main terminal strip in the MCC (X3, 338, 340) and connect it to the Thermal
Couple.
