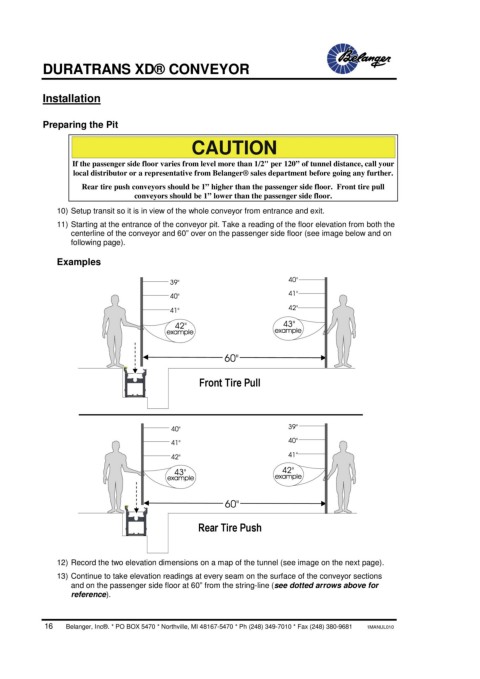

Page 20 - DuraTrans XD® Conveyor

DURATRANS XD® CONVEYOR

Installation

Preparing the Pit

CAUTION

If the passenger side floor varies from level more than 1/2" per 120” of tunnel distance, call your
local distributor or a representative from Belanger® sales department before going any further.
Rear tire push conveyors should be 1” higher than the passenger side floor. Front tire pull
conveyors should be 1” lower than the passenger side floor.
10) Setup transit so it is in view of the whole conveyor from entrance and exit.
11) Starting at the entrance of the conveyor pit. Take a reading of the floor elevation from both the
centerline of the conveyor and 60” over on the passenger side floor (see image below and on
following page).

Examples

Front Tire Pull

Rear Tire Push

12) Record the two elevation dimensions on a map of the tunnel (see image on the next page).
13) Continue to take elevation readings at every seam on the surface of the conveyor sections
and on the passenger side floor at 60” from the string-line (see dotted arrows above for
reference).
