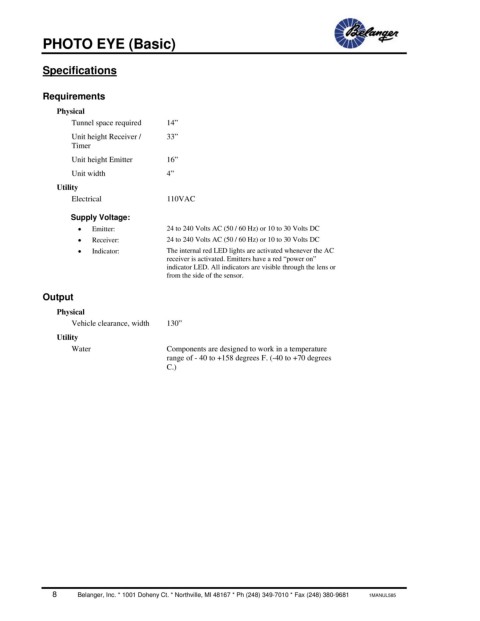

PHOTO EYE (Basic)

Specifications

Requirements

Physical
Tunnel space required 14”
Unit height Receiver / 33”
Timer

Unit height Emitter 16”
Unit width 4”
Utility
Electrical 110VAC

Supply Voltage:
• Emitter: 24 to 240 Volts AC (50 / 60 Hz) or 10 to 30 Volts DC
• Receiver: 24 to 240 Volts AC (50 / 60 Hz) or 10 to 30 Volts DC
• Indicator: The internal red LED lights are activated whenever the AC
receiver is activated. Emitters have a red “power on”
indicator LED. All indicators are visible through the lens or
from the side of the sensor.

Output

Physical
Vehicle clearance, width 130”
Utility
Water Components are designed to work in a temperature
range of - 40 to +158 degrees F. (-40 to +70 degrees
C.)
