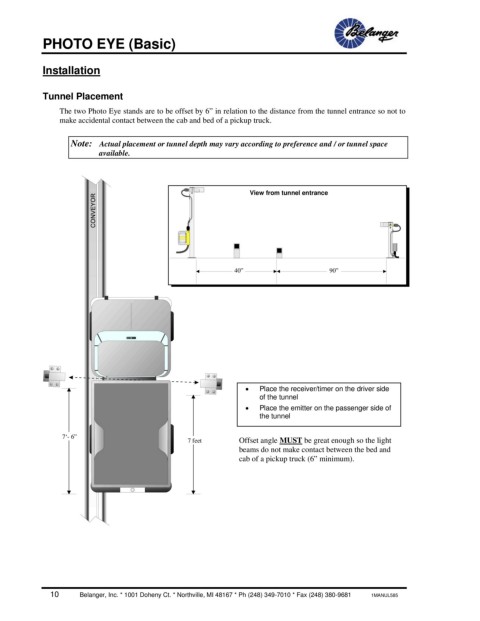

PHOTO EYE (Basic)

Installation

Tunnel Placement

The two Photo Eye stands are to be offset by 6” in relation to the distance from the tunnel entrance so not to
make accidental contact between the cab and bed of a pickup truck.

Note: Actual placement or tunnel depth may vary according to preference and / or tunnel space
available.

View from tunnel entrance

40” 90”

• Place the receiver/timer on the driver side
of the tunnel
• Place the emitter on the passenger side of
the tunnel

7‘- 6”
7 feet Offset angle MUST be great enough so the light
beams do not make contact between the bed and
cab of a pickup truck (6” minimum).
